Suspension failure in luxury, performance, or heavy-duty vehicles immediately compromises ride quality and operational safety. Misdiagnosing a single component often triggers a cascading chain reaction of mechanical breakdowns. A minor leak ignored today easily destroys an expensive air compressor by tomorrow.
Isolating a failure within the broader pneumatic system requires precision. You must distinguish between a failing air suspension strut, a burnt-out compressor, a sticking valve block, or a cracked airline. Once you identify the root cause, choosing a reliable replacement strategy becomes the next major hurdle. Vehicle owners and technicians face a complex choice between OEM parts, aftermarket alternatives, remanufactured units, or complete coilover conversions.

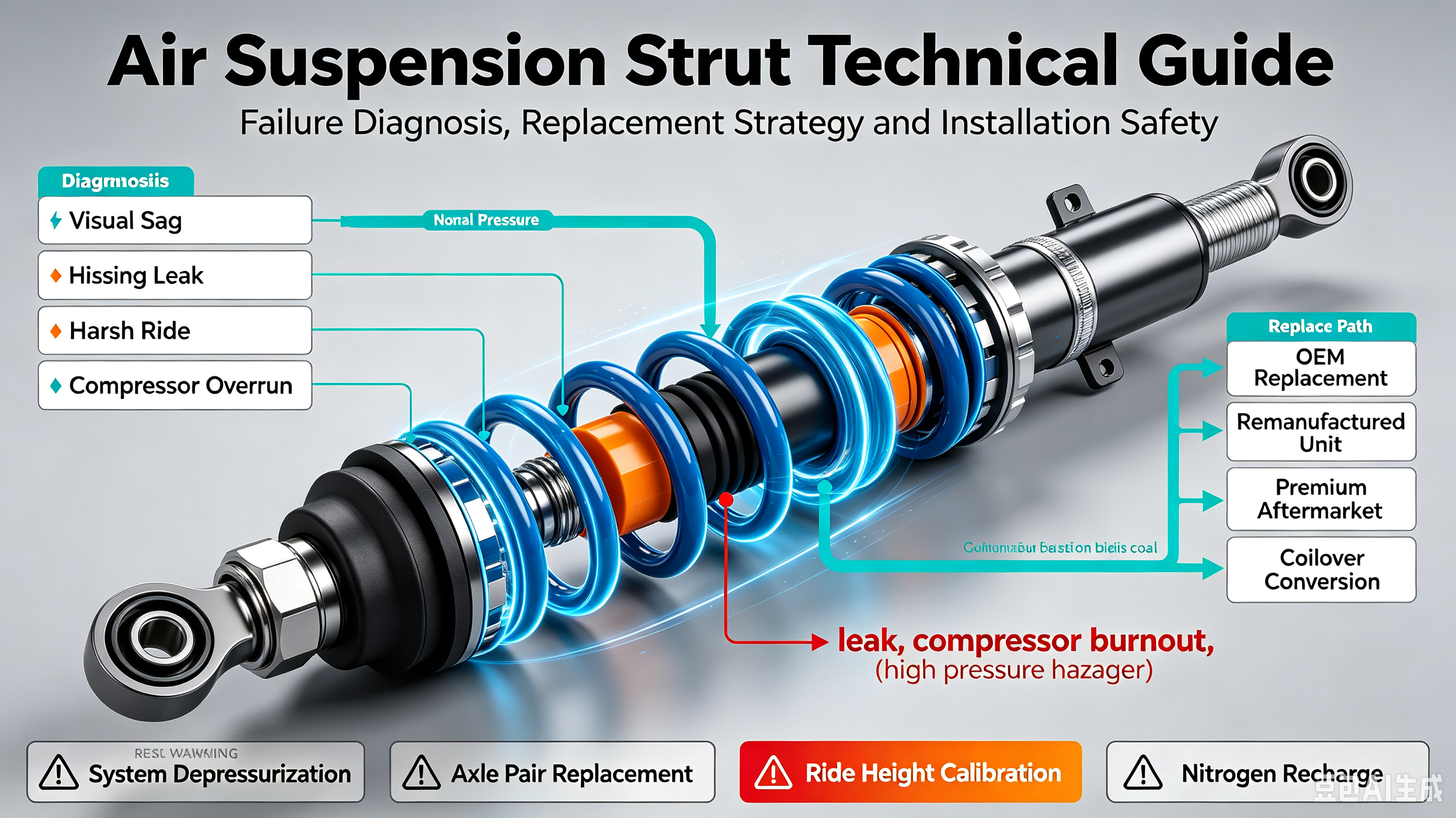

We will explore how to diagnose specific failure points, evaluate different replacement categories, and mitigate the inherent risks associated with high-pressure pneumatic installation.
Dual Functionality: An air suspension strut combines a pneumatic air spring (for load leveling and ride height) with a hydraulic shock absorber (for dampening), operating as a single structural unit.
Cascading Failure Risks: A leaking strut bladder forces the air compressor to run continuously, often resulting in premature compressor burnout if not addressed immediately.
Replacement Pathways: Buyers must weigh the exact ride quality of OEM replacements against the cost-efficiency of premium aftermarket struts, the sustainability of remanufactured units, or the permanent reliability of coilover conversion kits.
Installation Realities: Proper replacement often requires specialized diagnostic tools for system depressurization, post-installation calibration, and in some closed systems, nitrogen recharging.
Table of Contents

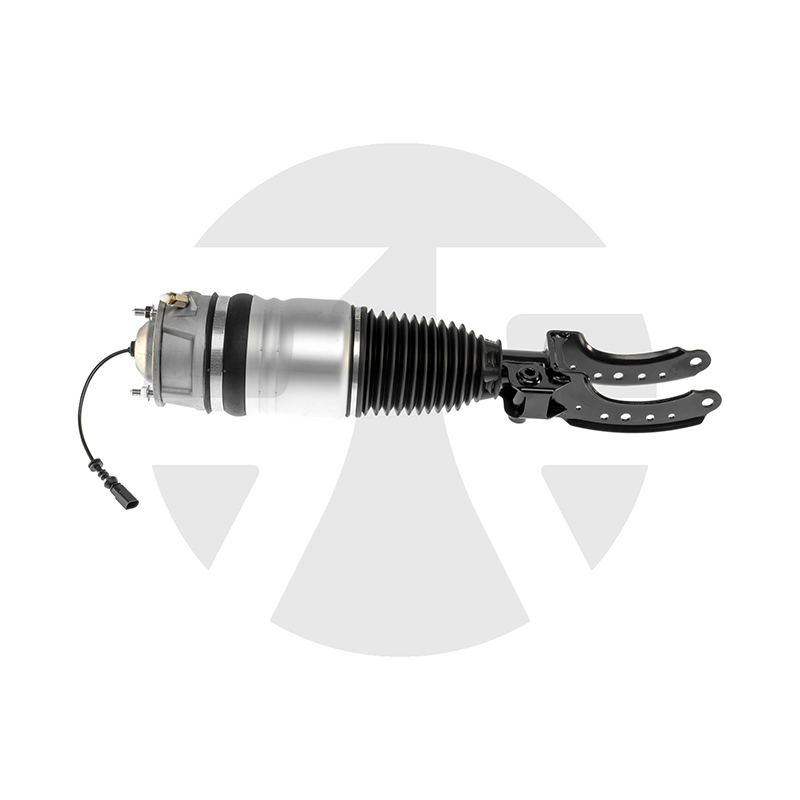

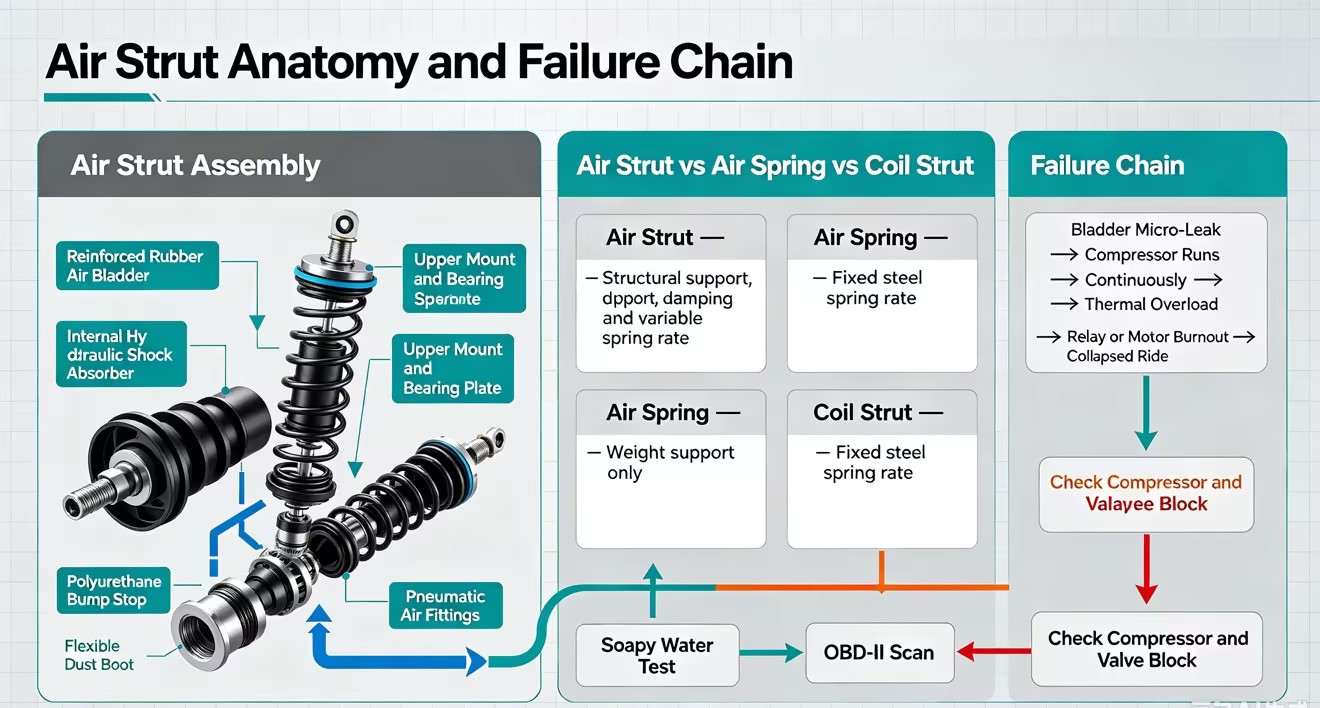

An air strut is a highly engineered assembly comprising several distinct parts working in unison. Mechanics and technicians must understand each component to diagnose failures accurately. The assembly breaks down into six primary elements:
Reinforced Rubber Air Bladder: This acts as the pneumatic spring. Manufacturers construct it from multi-ply, cross-corded rubber to withstand constant flexing and high internal air pressure.
Internal Hydraulic Shock Absorber: Positioned inside or alongside the bladder, this fluid-filled damper controls kinetic energy and prevents the vehicle from bouncing uncontrollably.
Upper Mount and Bearing Plate: This heavy-duty metal and rubber component secures the top of the strut to the vehicle chassis, absorbing harsh impacts and allowing the strut to pivot during steering.
Polyurethane Bump Stop: A dense foam or polyurethane block that prevents catastrophic metal-on-metal contact if the suspension bottoms out over a severe impact.
Flexible Dust Boot: A protective sleeve that shields the internal shock shaft and seals from abrasive road debris, sand, and moisture.
Pneumatic Air Fittings: Specialized brass or composite connectors (often VOSS fittings) that link the strut to the vehicle's central air delivery lines, utilizing precision O-rings to maintain a high-pressure seal.
Understanding the technical distinctions between suspension components prevents diagnostic errors in the shop. A strut acts as a structural pivot point for the vehicle's suspension geometry. It replaces the upper control arm in a traditional MacPherson setup, bearing the vehicle's weight while steering forces pass directly through it. A standalone air spring does not provide structural support; it simply sits between the frame and the axle to manage weight. Traditional coil struts use a steel spring with a linear or progressive spring rate. In contrast, an air strut utilizes compressed air, providing a variable spring rate that adapts instantly to changing loads and pressures.
The physical integration of this component dictates how the vehicle handles on the road. The strut mounts securely to the chassis at the top and attaches directly to the steering knuckle at the bottom. Because it serves as a primary structural pillar, it bears a significant portion of the vehicle's static and dynamic weight. Any physical alteration to the strut's mounting points or resting height immediately dictates wheel alignment geometry. Changes in strut height directly alter camber, caster, and toe measurements. Precision engineering is non-negotiable for these parts, as even a millimeter of deviation throws off the entire alignment.
The primary advantage of a pneumatic system is its ability to maintain a perfectly level chassis regardless of payload. The strut communicates constantly with electronic ride height sensors mounted on the control arms. These sensors send voltage signals to the electronic control unit (ECU). When you load heavy cargo or attach a trailer, the rear suspension naturally squats. The ECU detects this change and commands the valve block to route pressurized air into the rear struts. The rubber bladders inflate, raising the vehicle back to its factory-calibrated ride height. This dynamic leveling ensures optimal headlight aim, predictable steering response, and balanced braking distribution.
Modern pneumatic suspensions offer variable ride heights for different driving conditions. At highway speeds, the ECU automatically vents a precise amount of air from the struts. Lowering the chassis reduces aerodynamic drag, which improves fuel efficiency and increases high-speed stability by lowering the center of gravity. Conversely, when navigating deep snow or off-road trails, the driver can manually select an elevated mode. The compressor pushes maximum air volume into the struts, extending them to provide maximum ground clearance and protect the undercarriage from obstacles.
While the air bladder handles the vehicle's weight, the internal hydraulic shock absorber manages kinetic energy. As the vehicle travels over bumps, the hydraulic piston forces oil through internal valving, converting suspension movement into heat. Many modern struts integrate with active adaptive damping systems, such as magnetic ride control. These advanced dampers contain magnetorheological fluid. The vehicle's computer applies an electrical current to the fluid, changing its viscosity in milliseconds. This allows the strut to shift instantly from a soft, comfortable highway ride to a stiff, responsive track setting.
Catching a failing component early saves the rest of the pneumatic system. The most obvious visual indicator is a vehicle sagging on one corner or dropping completely over a single axle after sitting overnight. You might also notice the vehicle sitting unevenly on flat ground. Auditory clues are equally telling. Listen for a distinct hissing sound near the wheel well after turning off the engine, which indicates air escaping from the bladder or fittings. A noticeably harsher ride, excessive bouncing after hitting a pothole, or a clunking noise over speed bumps suggests the internal hydraulic shock has failed.
Locating micro-leaks requires systematic testing. The standard soap and water test remains highly effective in the field. Follow these steps to isolate the leak:
Elevate and safely secure the vehicle on a lift or jack stands to access the wheel well.
Mix a high-concentration solution of liquid dish soap and water in a spray bottle.
Heavily saturate the rubber bladder, the upper mount, the crimp rings, and the pneumatic air fittings.
Watch closely for growing foam clusters or expanding bubbles, which pinpoint the exact location of the escaping air.
Pay special attention to the bottom fold of the rubber bladder, as this area experiences the most friction and dry rot. Alongside physical testing, connect an OBD-II scanner capable of reading body control modules. Look for specific suspension fault codes related to pressure loss, sensor implausibility, or compressor overheating.
A leaking strut rarely dies alone. When a bladder loses air, the ECU commands the air compressor to run continuously to maintain ride height. Air compressors are designed for short, intermittent duty cycles. Forcing them to run constantly leads to severe thermal damage. The piston rings melt, and the electric motor burns out. The valve block can become contaminated with moisture and debris pulled in by the overworked compressor. Always evaluate the health of the compressor and valve block when diagnosing a strut failure. If the compressor sounds unusually loud or takes too long to raise the vehicle, it likely requires replacement as well.
Certain vehicle platforms exhibit well-documented wear patterns. Heavy-duty trucks and luxury SUVs place immense stress on their pneumatic components due to their heavy curb weights. Early diagnosis on these platforms is critical to avoid massive repair bills.
Vehicle Platform | Typical Failure Point | Average Mileage Onset | Secondary Risk if Ignored |
|---|---|---|---|
Mercedes-Benz S-Class | Front strut upper seal leaks | 60,000 - 80,000 miles | Burnt out AIRMATIC compressor |
Range Rover (L405) | Rubber bladder dry rot at the fold | 70,000 - 90,000 miles | Valve block moisture contamination |
Ram 1500 (Air Ride) | Nitrogen system freezing / fitting leaks | 50,000 - 75,000 miles | Total system paralysis in winter |
Porsche Panamera | Internal hydraulic shock blowout | 80,000 - 100,000 miles | Loss of PASM adaptive damping |
Choosing an OEM replacement guarantees seamless integration with factory active damping systems. You receive the exact ride quality, sensor compatibility, and structural geometry the vehicle had on the showroom floor. This route demands the highest capital investment. If the original factory part suffered from an inherent design flaw—such as a thin rubber sleeve prone to early dry rot—the OEM replacement will eventually fail for the exact same reason.
Remanufactured units offer a compelling middle ground. Specialized rebuilders take a failed OEM core, clean it, replace the rubber bladder, install new O-rings, and recharge the hydraulic shock. This process retains the original factory electronic damping capabilities, ensuring no dashboard warning lights appear. It is also an environmentally sustainable choice. The primary drawback is that the unit relies on the structural integrity of a used core. If the internal hydraulic valving is excessively worn, the rebuild might not last as long as a brand-new unit. Availability can also be limited for rare or older vehicle models.
The aftermarket sector has evolved significantly. Top-tier manufacturers often reverse-engineer factory parts to identify and correct OEM flaws. A premium aftermarket Air Suspension Strut frequently features thicker, multi-ply cross-corded rubber bladders and improved CNC-machined aluminum components instead of factory plastic. This results in a highly durable part at a reduced cost. The trade-off often involves electronic compatibility. Some aftermarket struts lack active damping capabilities and require you to install electronic bypass resistors to trick the ECU into thinking the factory shock is still present. This bypass prevents warning lights but slightly alters the vehicle's dynamic ride characteristics.
For vehicles plagued by continuous pneumatic failures, a coilover conversion kit offers a permanent exit strategy. These kits replace the entire air assembly with traditional steel springs and conventional hydraulic shocks. This eliminates the pneumatic system entirely, ensuring zero future air leaks and providing highly predictable maintenance. This conversion requires sacrificing dynamic load leveling. The vehicle will sag when heavily loaded. Installing a conversion kit permanently alters the vehicle's ride characteristics, often resulting in a stiffer, more truck-like feel. You may also need specialized electronic modules to permanently disable dashboard suspension warnings.
When evaluating replacement parts, scrutinize the technical specifications. The durability of the rubber sleeve is paramount. Look for multi-ply, cross-corded rubber construction from reputable rubber manufacturers. Examine the grade of the crimping rings used to secure the bladder to the strut body; heavy-duty stainless steel rings resist corrosion better than standard alloys. Consider the quality of the hydraulic fluid used inside the damper. High-performance synthetic fluids resist foaming and viscosity breakdown under extreme temperatures, ensuring consistent dampening performance over the life of the strut.
Modern vehicles rely heavily on interconnected electronic networks. Evaluate exactly how well the replacement strut interfaces with proprietary vehicle systems, such as Porsche PASM or Mercedes-Benz AIRMATIC. If you choose a true plug-and-play active damper, the installation is straightforward, and the vehicle retains its adaptive ride modes. If you opt for a passive aftermarket strut with an electronic bypass module, understand the trade-offs. The bypass module simply sends a fixed resistance value to the ECU to prevent error codes. The vehicle will drive safely, but the suspension will no longer stiffen or soften based on steering input or road conditions.
Replacing pneumatic suspension components involves more than just the cost of the part itself. The labor required for this job is highly specialized. Technicians must safely depressurize the system, physically swap the heavy components, and then use advanced diagnostic software to recalibrate the ride height sensors. Following the installation, a comprehensive four-wheel alignment is mandatory to correct any geometry shifts. When evaluating your options, factor in these specialized labor hours, calibration procedures, and alignment requirements to understand the true scope of the repair.
Compare the upfront investment against the expected lifespan of the component. OEM parts typically carry a standard 12-month or 24-month warranty. Many top-tier aftermarket manufacturers offer limited lifetime warranties on their struts, demonstrating confidence in their re-engineered materials. Consider how long you plan to keep the vehicle. If you intend to drive the vehicle for another 100,000 miles, investing in a premium aftermarket part with a robust warranty provides superior long-term peace of mind compared to a shorter-warrantied OEM replacement.
Pneumatic suspension systems operate under extreme pressure, often exceeding 150 PSI. Removing a highly pressurized component without proper preparation poses severe physical danger. You cannot simply unbolt an air line. Technicians must use specialized diagnostic software to command the ECU to safely vent the air from the specific strut being replaced. Attempting to loosen a pressurized fitting can cause the line to violently whip, potentially causing severe injury or stripping the delicate threads on the valve block.
Installing a new strut is rarely a purely mechanical job. Once the new hardware is bolted in place, the vehicle's computer does not automatically know the correct ride height. The ECU must be recalibrated using specialized scan tools. The technician inputs specific measurements from the center of the wheel hub to the fender lip, teaching the computer the new baseline height. Skipping this calibration process results in a vehicle that sits unevenly, leading to erratic handling, poor braking performance, and rapid, uneven tire wear.
Suspension components degrade at similar rates. There is a strong mechanical reasoning behind replacing struts in axle pairs. If you replace only the left front strut, the new unit will have a stiff, fresh hydraulic damper and a rigid new rubber bladder. The right front strut will still have worn valving and fatigued rubber. This imbalance causes unequal hydraulic dampening, making the vehicle pull to one side during hard braking or cornering. The older strut is highly likely to fail shortly after the repair, forcing you to pay for a second alignment and calibration procedure.
Certain modern closed-loop systems, found in newer Jeep and Porsche models, do not use ambient air. These systems are filled with dry nitrogen gas. Nitrogen is used because it is completely devoid of moisture. If a technician mistakenly introduces ambient air into a closed-loop nitrogen system, the moisture in the air will eventually condense. During winter months, this condensation freezes inside the valve block or airlines, completely paralyzing the suspension. Replacing a strut on these specific vehicles requires specialized equipment to vacuum the system and recharge it with pure, dry nitrogen.
Preventative maintenance significantly extends the lifespan of pneumatic components. The rubber air bladders are constantly exposed to the elements. Periodically washing the bladders with mild soap and water removes abrasive road debris, sand, and corrosive winter salts. When dirt accumulates on the folds of the rubber, it acts like sandpaper every time the suspension compresses and extends. Keeping the rubber clean minimizes friction wear and delays the onset of dry rot, which is the leading cause of micro-leaks.
Integrate suspension checks into your regular maintenance schedule. Ask your technician to inspect the dust boots and bump stops during routine oil changes. A torn dust boot allows grit to bypass the seal and score the internal hydraulic shock shaft, leading to premature oil leaks. A degraded bump stop indicates the suspension is frequently bottoming out, which puts immense stress on the upper mounts. Catching minor hydraulic leaks or early signs of rubber degradation allows you to plan for a replacement before a catastrophic blowout leaves you stranded.
Extreme temperatures are the natural enemy of rubber and hydraulic seals. Prolonged exposure to extreme cold makes the rubber bladder stiff and brittle, increasing the likelihood of cracking when the vehicle hits a pothole. Extreme heat accelerates rubber degradation and causes O-rings to dry out and shrink. While you cannot control the weather, garage storage mitigates temperature-induced stress. Keeping the vehicle in a climate-controlled environment overnight reduces the thermal shock on the pneumatic components, preserving their flexibility and sealing integrity.
The air suspension strut is a critical, complex component that dictates both vehicle safety and passenger comfort. When this system fails, it requires a calculated, technical approach to repair rather than a quick fix. Choosing the right replacement strategy depends entirely on your vehicle's specific architecture, your budget, and your long-term ownership goals. OEM, remanufactured, or premium aftermarket struts are best for retaining original vehicle dynamics and resale value. Coil conversions are strictly reserved for high-mileage vehicles where the total pneumatic system has failed and budget constraints take priority.
To ensure a successful repair and avoid cascading system failures, follow these actionable steps:
Run a complete OBD-II diagnostic scan to isolate the exact fault code before ordering parts.
Inspect the air compressor and valve block for signs of collateral thermal damage or moisture contamination.
Verify that your chosen replacement strut is fully compatible with your vehicle's factory active damping system.
Schedule a post-installation ride-height calibration and a comprehensive four-wheel alignment with a qualified technician.
A: An air suspension strut typically lasts between 60,000 and 100,000 miles. This lifespan is heavily influenced by environmental factors. Extreme cold, intense heat, heavy road salt usage, and abrasive dirt accelerate rubber dry rot and friction wear, potentially causing premature failure before the 60,000-mile mark.
A: Driving with a broken strut is highly dangerous and strongly discouraged. It severely compromises vehicle handling, increases braking distances, and causes unpredictable steering. Driving on a leaking strut forces the air compressor to run continuously, guaranteeing the destruction of the compressor and leading to massive repair bills.
A: An air spring is a standalone pneumatic bag that only supports vehicle weight and adjusts ride height. An air suspension strut is a complete structural assembly that replaces the upper control arm, dictates suspension geometry, and houses an internal hydraulic shock absorber to manage dampening.
A: A suspension that drops overnight indicates a slow pressure loss in the pneumatic system. The primary culprits are micro-leaks in the strut's rubber bladder due to dry rot, failing O-rings at the pneumatic air fittings, or a faulty valve block that allows air to slowly bleed back through the lines.
A: Yes, a comprehensive four-wheel alignment is absolutely mandatory. Because the strut acts as a primary structural pivot point for the suspension, removing and replacing it directly alters the vehicle's camber, caster, and toe geometry. Skipping the alignment results in rapid, uneven tire wear and poor handling.
A: While technically possible, replacing a single strut is mechanically discouraged. A new strut has stiff rubber and fresh hydraulic valving, while the older strut on the opposite side is worn. This imbalance causes uneven dampening, unpredictable handling during emergency maneuvers, and accelerates the failure of the older component.
