The transition from traditional coil or leaf springs to pneumatic setups gives you direct control over ride height, load leveling, and ride quality. However, it introduces heavy mechanical and electronic complexity. Whether you are upgrading a fleet truck for heavy towing, modifying a chassis for track performance, or diagnosing a failing factory system, misdiagnosing issues happens constantly. Buyers often purchase mismatched parts because they do not understand the system architecture. Evaluating a pneumatic setup requires isolating its air, mechanical, and electronic elements. This guide breaks down all the main air suspension components, their failure points, and the technical criteria you need to make informed repair or upgrade decisions.
Component Synergy: An air suspension system is only as reliable as its weakest link; high-end air springs will still fail prematurely if paired with an undersized compressor, a leaky valve manifold, or blown dampers.
Management Dictates Performance: The choice between pressure-based and height-based control modules fundamentally alters system accuracy, installation complexity, and overall cost.
Moisture is the Enemy: Overlooking ancillary components like water traps and desiccant filters guarantees winter freeze-ups and accelerated internal corrosion of the valve block and tank.
Duty Cycle Matters: Compressor selection must align with intended use (e.g., frequent load adjustments require 100% duty cycle compressors to prevent thermal overload).
Table of Contents

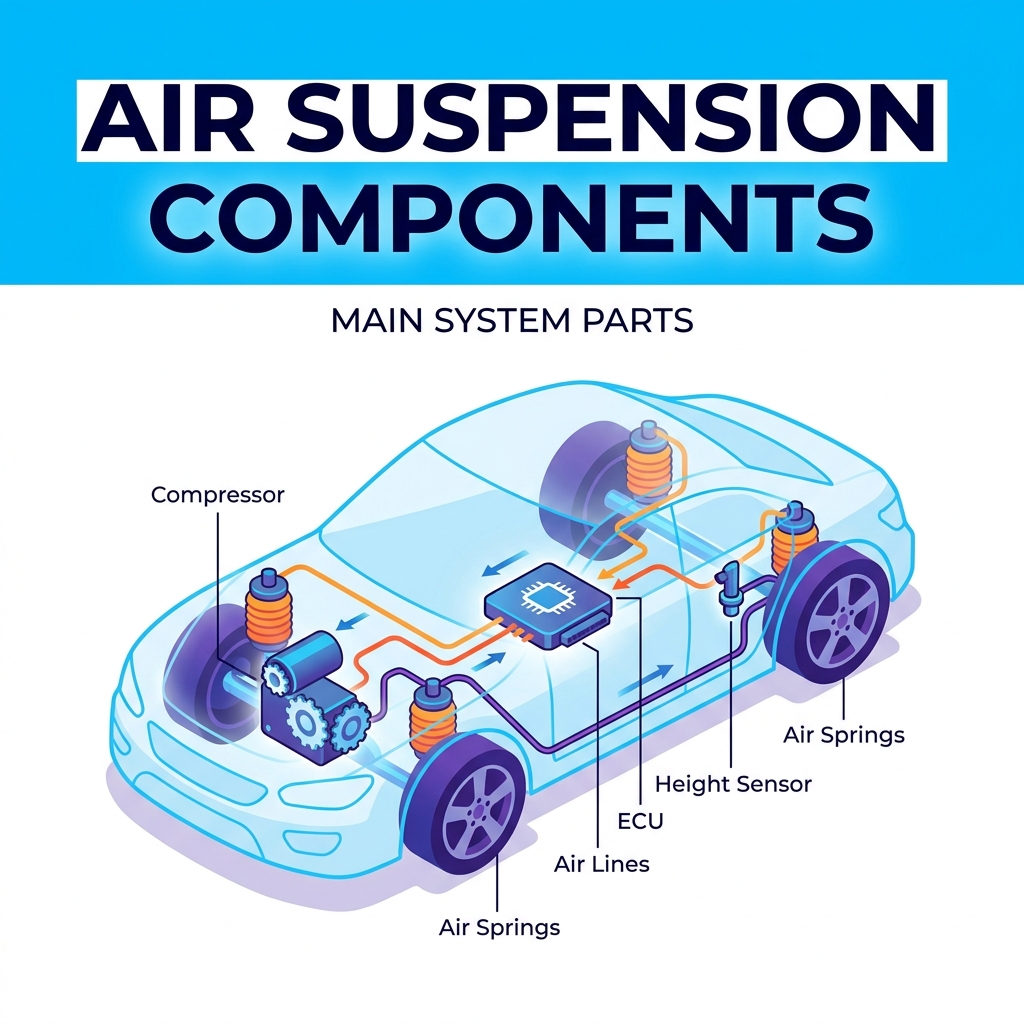

Understanding a pneumatic setup requires mapping the exact lifecycle of air as it moves through the vehicle. You cannot troubleshoot a sagging corner if you do not know how the air gets there. The pneumatic loop follows a strict sequence of events.
Generation: An onboard compressor draws in ambient air, compresses it, and pushes it through a leader hose.
Storage: The compressed air enters a storage tank, acting as a pneumatic battery waiting for deployment.
Distribution: A valve manifold opens specific channels, directing air from the tank through nylon airlines.
Actuation: The air fills the rubber springs or struts, physically lifting the vehicle chassis against gravity.
Monitoring: Sensors read the pressure or physical height and send data back to the Electronic Control Unit (ECU) to maintain the target level.
Before choosing air suspension components, consider the required load capacity, adjustment speed, and operating conditions. Heavy-duty trucks typically need larger air springs and greater air reserves, while performance vehicles may prioritize fast adjustment, lower weight, and accurate height control. You should also choose between OEM and aftermarket systems. OEM air suspension integrates closely with factory ABS, stability control, and adaptive damping, but replacement parts may need to match the original system. Aftermarket systems offer more flexibility in choosing compressors, tanks, and controls, although they usually require more custom installation.
Air springs act as the physical muscles of the suspension. Sleeve-style air springs feature a straight, cylindrical rubber bladder that rolls down over a lower piston as the suspension compresses. They provide a linear spring rate. This means the resistance remains relatively constant throughout the suspension travel. Their narrow profile makes them ideal for tight OEM strut towers or light-duty vehicles where clearance is limited.
Convoluted air springs, often called bellows, look like stacked rubber donuts. They come in single, double, or triple convoluted designs. Unlike sleeve springs, convoluted bags offer a progressive spring rate. As they compress, they become exponentially stiffer. This characteristic provides exceptional load capacity and stability. Mechanics rely on convoluted bags for heavy-duty towing, commercial chassis, and custom setups requiring massive lift capabilities.
Spring Type | Spring Rate | Load Capacity | Clearance Required | Best Application |
|---|---|---|---|---|
Sleeve-Style | Linear | Moderate | Minimal (Narrow profile) | Light-duty vehicles, tight strut towers, luxury ride quality. |
Convoluted (Bellows) | Progressive | High to Extreme | Significant (Wide profile) | Heavy towing, commercial trucks, extreme lift setups. |
Air springs support the vehicle’s weight and adjust ride height, while shock absorbers or dampers control bouncing and rebound after the vehicle hits a bump. Both are necessary for stable suspension performance. Air struts combine the air spring and shock absorber into one unit, and many modern systems include electronic damping that allows the ECU to adjust shock stiffness based on air pressure and driving conditions.
The durability of an air spring heavily depends on its material composition. Premium units utilize multi-ply reinforced rubber compounds. Manufacturers blend natural rubber with synthetic polymers to provide high tensile strength while resisting ozone degradation, UV damage, and extreme temperature fluctuations. Cheap rubber will crack and leak within a year of harsh winter driving.
Structural integrity extends beyond the rubber. Inspect the crimp rings that secure the rubber bladder to the end caps. High-quality air suspension components use heavy-duty steel or stainless steel crimp rings to prevent blowouts under maximum pressure. CNC-machined aluminum end caps offer superior sealing and corrosion resistance compared to stamped steel or plastic alternatives. Internal bump stops are also required. They prevent the vehicle chassis from bottoming out and destroying the shock internals if the system loses air pressure.
Air springs operate in harsh environments and degrade over time. Visual inspections often reveal dry rot—tiny cracks in the rubber caused by age and ozone exposure. Abrasion is another frequent killer. If an airline fails or a bracket bends, the rubber bladder may rub against the chassis or tire. This friction quickly wears a hole through the plies. Micro-leaks frequently develop around the crimp rings as the rubber loses its elasticity over thousands of compression cycles.
When an air spring or strut fails, you must replace them in axle pairs. Replacing only one side creates an imbalance in spring rates and damping characteristics. A new, stiff air spring paired with an old, fatigued unit will cause unpredictable vehicle dynamics, uneven tire wear, and potentially dangerous handling during emergency maneuvers.
The air compressor dictates how fast your system recovers and adjusts. Compressor performance is measured in Cubic Feet per Minute (CFM). However, CFM is not a static number; it decreases as the pressure in the tank increases. A compressor might flow 2.5 CFM at 0 PSI but drop to 0.8 CFM at 100 PSI. Always evaluate CFM output at the system's normal operating pressure, typically between 100 and 150 PSI.
Duty cycle is equally important. It represents the percentage of time a compressor can run continuously within a given timeframe without overheating. Pushing a low duty cycle compressor beyond its limits guarantees premature motor failure.
Duty Cycle Rating | Continuous Run Time | Cool Down Time | Recommended Use Case |
|---|---|---|---|
10% | 3 Minutes | 27 Minutes | Emergency tire inflation only. Not for suspension. |
33% | 15 Minutes | 30 Minutes | Basic load leveling with small 2-gallon tanks. |
50% | 30 Minutes | 30 Minutes | Moderate daily driving with 3-gallon tanks. |
100% | 60 Minutes | 0 Minutes (Continuous) | Frequent adjustments, 5+ gallon tanks, heavy towing. |
Heat and vibration can shorten an air compressor’s service life, so quality units often include thermal overload protection that shuts the motor off when it becomes too hot. A one-way check valve in the leader hose also prevents high-pressure air from flowing back from the tank into the compressor, reducing restart load and protecting the motor and fuses. Because compressors generate strong vibration, rubber isolation mounts are commonly used to reduce cabin noise and protect the compressor, leader hose, and surrounding components from vibration-related damage.
System scalability dictates the number of compressors required. A single compressor easily handles a standard 2-to-3-gallon tank used for occasional load leveling. However, if your system utilizes a tank larger than 5 gallons, or if you require rapid recovery times for frequent adjustments, upgrading to a dual compressor configuration becomes necessary.
Dual setups also provide critical redundancy. In remote environments or heavy-duty applications, a single compressor failure disables the entire suspension system. Running two compressors ensures that if one unit fails, the secondary unit can still generate enough air to maintain ride height and get the vehicle home safely.
The air tank stores compressed air so the suspension can adjust quickly without constantly running the compressor. Tank size should match the vehicle and system demand: smaller passenger vehicles may use a 3-gallon tank, while heavy-duty applications often require 5 gallons or more. Aluminum tanks are lightweight and corrosion-resistant, while steel tanks are more affordable but require better moisture control to prevent internal rust. Tank port design also affects installation, and every tank should include a drain port at the lowest point to remove accumulated condensation.
Airlines carry pressurized air from the tank and valve manifold to the air springs. Most systems use 1/4-inch or 3/8-inch DOT-approved nylon lines because they offer good pressure resistance, flexibility, and durability. Connections typically use Push-to-Connect (PTC) or compression fittings, with PTC fittings being easier to install. To prevent slow air leaks, airlines should be cut cleanly and squarely with a proper hose cutter, as angled or damaged cuts can affect the O-ring seal inside the fitting.
Line diameter directly impacts airflow velocity and adjustment speed. A 1/4-inch line provides slow, smooth adjustments, ideal for luxury rides and precise leveling. A 3/8-inch or 1/2-inch line allows massive air volume to move instantly, resulting in rapid, aggressive height changes. However, larger lines are harder to route and bend.
Routing practices determine system reliability. Keep all airlines away from exhaust heat sources, as nylon melts quickly. Avoid sharp chassis edges that can chafe the lines over time. When routing lines to the air struts, leave enough slack to accommodate full suspension articulation and steering lock without pulling the line tight or kinking it.
The valve manifold acts as the gatekeeper, directing air into or out of the springs. Analog or manual systems use paddle valves or mechanical switches. These setups are incredibly simple and cost-effective. However, they lack preset capabilities and require routing pressurized airlines directly into the vehicle cabin. This introduces noise and leak risks right next to the driver.
Digital or electronic manifolds utilize solenoid-driven valve blocks. These compact aluminum blocks house electric intake and exhaust valves. They keep all airlines outside the cabin, requiring only a thin wiring harness to connect to the interior controller. Digital manifolds allow for advanced electronic presets and remote control. The trade-off is a higher initial cost and a susceptibility to electrical faults or frozen solenoids if moisture enters the system.
Modern management systems rely on sensors to understand the vehicle's position. Height-based systems use physical rotary potentiometers mounted to the chassis. Articulating linkage arms connect these sensors to the vehicle's moving control arms. As the suspension moves up and down, the linkage rotates the sensor, sending a varying voltage signal back to the ECU.
Proper geometry calibration is critical during installation. You must find the exact pivot point of the suspension. If you mount the linkage too close to the pivot, the sensor will not read enough voltage change. If you mount it too far out, the linkage will over-extend and snap during full suspension droop. Because these sensors live in the wheel wells, they must feature heavy-duty weather-proofing to survive rain, salt, and road debris.
Choosing how the ECU calculates ride height is the most important management decision you will make.
Pressure-Based Management: Uses manifold sensors to measure the air pressure inside each spring. The ECU estimates the vehicle's height based on this pressure. The limitation here is load variance. If you add heavy cargo or passengers, the pressure increases, but the physical ride height drops. The ECU sees the correct pressure and assumes the height is correct, resulting in a sagging vehicle.
Height-Based Management: Uses the physical rotary sensors. The ECU reads the actual physical position of the suspension control arms. It will add or exhaust air until the vehicle reaches the exact programmed height, completely regardless of the load weight. The advantage is absolute true position accuracy. The trade-off is a highly complex installation process requiring custom bracket fabrication and meticulous calibration.
Advanced ECUs offer robust integration and diagnostic tools. Modern controllers feature Bluetooth connectivity, allowing users to adjust ride heights, monitor tank pressures, and update firmware via mobile apps. Onboard diagnostic capabilities save hours of shop time. High-end ECUs can detect slow leaks by monitoring unexpected pressure drops over time. They alert the driver to low battery voltage before the compressor stalls and identify specific sensor faults immediately.
Compressing ambient air inherently generates condensation. As the compressor squeezes the air, the moisture suspended in it turns into liquid water, which pools in the tank and lines. If left unchecked, this water travels into the aluminum valve manifold. In freezing temperatures, this water turns to ice, locking the solenoids open or closed and completely disabling the suspension.
Moisture management is non-negotiable. Inline water traps use centrifugal force to separate liquid water from the air stream before it reaches the manifold. Desiccant filters take this a step further by passing the air through moisture-absorbing beads, delivering completely dry air to the system. These components act as preventative maintenance tools, stopping valve freezing and preventing internal tank rust.
Air compressors draw massive amounts of electrical current, often exceeding 30 amps under load. You cannot power a compressor directly from a standard dashboard switch. Heavy-duty electrical relays, typically 40-amp or higher, are required to safely switch this high-current load. The ECU sends a low-amp trigger signal to the relay, which then closes a heavy-gauge circuit directly from the battery to the compressor.
Wiring harnesses must survive harsh under-chassis environments. Standard crimp connectors will corrode and fail when exposed to road salt and water. Quality systems utilize weather-sealed connectors, such as Deutsch connectors, featuring internal silicone seals. Proper inline fusing near the battery is mandatory to prevent electrical fires in the event of a compressor short circuit.
When a factory air suspension fails, owners face a choice: replace with OEM parts or convert to an aftermarket system. Retaining the OEM system makes sense when you want to preserve factory active damping integration and dashboard controls. However, OEM parts carry a massive premium. When multiple factory components fail simultaneously, bypassing the OEM modules with a standalone aftermarket management system often provides better reliability and lower replacement costs moving forward.
The primary risk during any installation is introducing slow system leaks. A minor leak forces the compressor to run constantly to maintain pressure, eventually leading to thermal burnout. Mitigation requires strict testing protocols. You must perform a mandatory leak-down test using a soapy water solution on every single fitting, airline connection, and tank port. Bubbles indicate a leak that must be addressed immediately. Additionally, utilize liquid thread sealant or Teflon tape on all NPT (National Pipe Thread) fittings to ensure a gas-tight seal.
Air suspension systems are not install-and-forget modifications. Establishing a baseline maintenance schedule ensures longevity. Drain the air tank and empty inline water traps at least once a month, or more frequently in highly humid climates. Inspect the rubber air springs quarterly for signs of abrasion, dry rot, or clearance issues. Check the height sensor linkages to ensure they articulate smoothly without binding or severe corrosion. Regularly replacing the compressor's air intake filter prevents dust from scoring the internal cylinder walls.
The reliability of a pneumatic setup is dictated by the quality of its management and air generation components, not just the air springs themselves. Investing in premium bags means little if a cheap compressor burns out or a leaky manifold leaves the vehicle stranded. For basic load leveling, prioritize heavy-duty convoluted springs paired with a simple analog or pressure-based system. For dynamic performance or aggressive stance modifications, invest in height-based management and 100% duty cycle compressors.
Audit your vehicle’s chassis clearances and calculate your required load capacity before purchasing any parts.
Select a management system that aligns with your technical installation capabilities and budget.
Install inline water traps and heavy-duty relays immediately to protect your most expensive components from moisture and electrical failure.
Perform a comprehensive soapy water leak test on all fittings before finalizing the installation.
A: High-quality rubber air springs generally last between 80,000 and 100,000 miles, or roughly 7 to 10 years, depending on climate and road conditions. Compressors and valve manifolds can last equally long if the system remains leak-free and moisture is properly managed through regular maintenance.
A: It is highly discouraged. If the system loses pressure, the vehicle will drop to its internal bump stops. Driving in this condition causes severe tire rubbing, damages the shock absorbers, and creates dangerous, unpredictable handling dynamics. You should tow the vehicle to prevent further structural damage.
A: A constantly running compressor indicates a leak in the system. The ECU is continuously trying to replace air that is escaping from a faulty airline cut, a loose fitting, or a damaged air spring. You must locate and fix the leak immediately to prevent the compressor motor from burning out.
A: Yes. Compressing air always generates some level of condensation, regardless of the ambient humidity. While a dry climate produces less water, moisture will still accumulate over time. Draining the tank periodically prevents internal rust and protects the valve block.
A: The difference lies in airflow volume and adjustment speed. A 1/4-inch line restricts airflow, resulting in slower, smoother vehicle lifting and lowering. A 3/8-inch line allows more air to pass quickly, causing rapid, aggressive height adjustments. 1/4-inch lines are also easier to route in tight spaces.
A: Yes, aftermarket systems are highly modular. You can safely pair a compressor from one brand with a tank, manifold, and air springs from other manufacturers, provided the airline diameters, fitting threads, and electrical requirements match the management system's specifications.
