An air suspension system provides excellent load leveling and ride comfort. However, rubber components degrade and electronic sensors fail as the miles pile up. When a system starts leaking, it triggers a chain reaction. A small leak forces the compressor to run constantly. This burns out the motor and leaves the vehicle undrivable. Owners then face massive repair estimates. Deciding whether to maintain, repair, or replace these systems requires looking at component lifespans, labor rates, and aftermarket alternatives. This guide breaks down the physical realities of ownership. We will show you how to spot early warning signs and compare replacement strategies. You can use this data to manage your overall air suspension maintenance cost effectively.
Predictable Lifespans: Most factory air suspension components require major servicing or replacement between 80,000 and 120,000 miles due to natural rubber degradation and moisture intrusion.
Cascading Failure Risks: Ignoring a minor air spring leak forces the compressor to overwork, rapidly transforming a moderate repair into a multi-component system failure.
Cost Variance: The total air suspension maintenance cost fluctuates wildly based on the choice between OEM dealership repairs, aftermarket replacement parts, or permanent coil spring conversion kits.
The Conversion Alternative: For older vehicles, deleting the air suspension in favor of traditional steel coil or leaf springs is often the most financially viable long-term solution, though it sacrifices factory ride dynamics.
Table of Contents

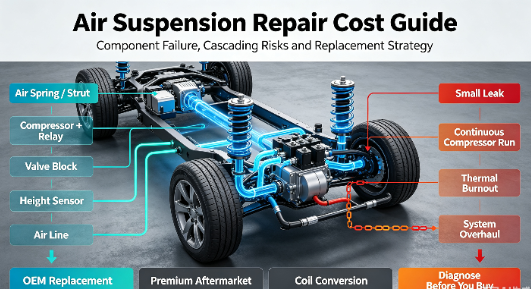

To grasp why maintaining these systems requires a substantial budget, you must first understand the physical limitations of the components involved. Pneumatic systems operate under extreme pressure and constant exposure to harsh road conditions. Every component represents a potential failure point.
Air springs support the vehicle’s weight and constantly flex as the suspension moves, so heat, road salt, dirt, and cold temperatures can gradually damage the rubber. Wear often appears around the lower fold, where trapped sand and debris can cause small cracks and air leaks. Vehicles may use standalone air springs or integrated air struts that combine the air spring and shock absorber in one unit. If an integrated strut fails, the complete assembly may need replacement. Because air springs on the same axle experience similar mileage and conditions, replacing them in pairs is often recommended to maintain balanced suspension performance.
The air compressor supplies pressurized air to the suspension and is designed to run only for short periods. If an air spring or line develops a leak, the compressor must run more often to maintain pressure and ride height, which can cause overheating and premature failure. Replacing the compressor without repairing the leak can quickly damage the new unit as well. The compressor relay can also fail and keep the compressor running even when it is not needed, potentially draining the battery and damaging the compressor.
The valve block directs airflow. Think of it as a manifold with multiple electronic gates. Each gate is a solenoid sealed by tiny rubber O-rings. As the vehicle ages, these O-rings harden and flatten out. When winter hits, the cold shrinks the hardened rubber, creating internal cross-leaks. The front left strut might bleed air into the front right strut, causing the vehicle to lean erratically. Diagnosing a faulty valve block requires a bidirectional scan tool. We command individual solenoids to open and close while monitoring pressure drops.
Ride height sensors bolt to the lower control arms. They use a small plastic arm connected to a rotary potentiometer. As the suspension moves up and down, the arm turns the dial, sending a voltage signal to the computer. These plastic arms become brittle. A solid impact with a pothole can snap the arm in half. When this happens, the computer thinks that specific wheel is fully extended and dumps the air pressure to compensate, dropping that corner to the ground.
Connecting all these components are miles of plastic air lines. Tracing a micro-leak in these lines requires immense diagnostic patience. Mechanics must often spray soapy water along the entire routing path or use specialized smoke machines to locate pinhole leaks hidden behind fender liners and underbody panels.
Budgeting for pneumatic suspension repairs requires understanding the stark differences between service providers and parts manufacturers. The route you choose dictates the final financial impact.
Dealerships operate on strict factory protocols. If a valve block has a leaking O-ring, the factory service manual dictates replacing the entire valve block assembly. They do not rebuild components. This approach ensures a reliable repair but maximizes the parts expense. Dealership technicians also follow standardized book times for labor, meaning you pay a set rate regardless of how fast the technician completes the job.
Independent specialty shops offer more flexibility. A skilled independent mechanic might disassemble the valve block and replace the faulty O-rings, saving the customer a massive parts markup. However, working on modern pneumatic systems requires heavy investment in diagnostic technology. Shops must pay annual licensing fees for factory-level software suites like PIWIS for Porsche or STAR for Mercedes. You cannot simply swap a strut and drive away. The system must be electronically depressurized before unbolting any lines. After installation, the mechanic uses the scanner to run a calibration routine, teaching the computer the new baseline ride height. The overhead cost of this equipment means independent labor rates remain substantial.
Procuring parts directly from the manufacturer guarantees exact fitment but carries a heavy brand markup. You pay for the logo on the box. Purchasing a factory-boxed air strut from a dealership parts counter represents the most expensive procurement method possible.
The aftermarket sector provides excellent alternatives. Tier-1 suppliers reverse-engineer factory struts and identify weak points. For example, many factory air springs use a thin aluminum crimp ring to secure the rubber bladder to the top mount. These rings often stretch and leak. Premium aftermarket companies replace this design with heavy-duty, CNC-machined crimp rings and thicker, multi-ply rubber sleeves. You get a superior component that outlasts the original equipment. When sourcing aftermarket parts, always verify the warranty terms. Reputable manufacturers stand behind their engineering with lifetime guarantees against defects.
Repair expenses scale dramatically based on the failure point.
Minor Repairs: Replacing a faulty compressor relay, swapping a broken ride height sensor linkage, or splicing a rubbed-through plastic air line represents a low-level financial impact. These are standard wear-and-tear fixes that require minimal parts and labor.
Corner Replacements: Replacing individual air springs or integrated struts requires a moderate financial investment. Because you must replace them in pairs across the axle, you are buying two major components and paying for several hours of labor.
System Overhauls: A complete system failure occurs when cascading failures destroy multiple components. If a leaking bag burns out the compressor and contaminates the valve block, you must replace the entire system. This requires four new struts, a new pump, a new manifold, and extensive labor. A complete overhaul represents a major financial burden that often rivals the cost of an engine replacement.
Rubber air suspension components typically require major service or replacement between 80,000 and 120,000 miles, with extreme temperatures and road salt often shortening their lifespan. Regular maintenance can help prevent early failure, especially by controlling moisture. The compressor’s dryer uses desiccant beads to remove moisture from incoming air, but these beads become saturated over time. Replacing the desiccant beads or dryer periodically helps prevent moisture from causing corrosion or freezing inside the valve block and other suspension components.

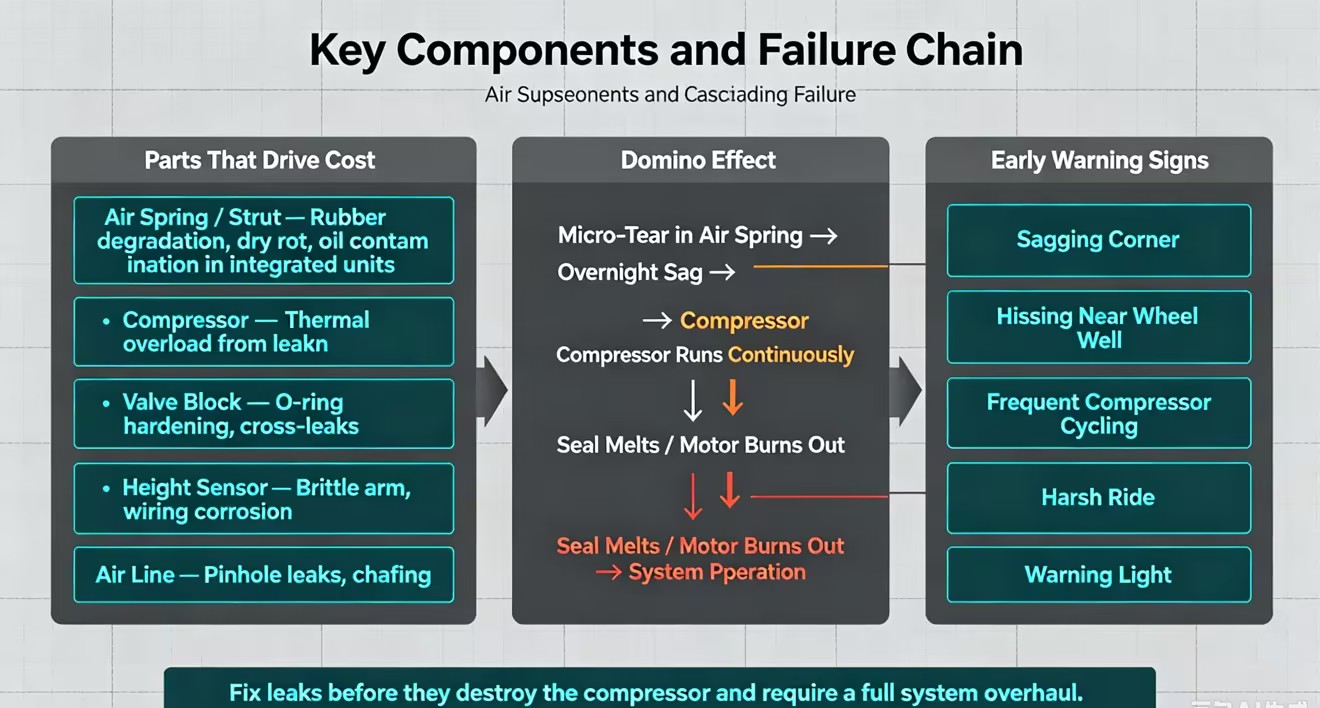

The most dangerous aspect of pneumatic suspension ownership is the speed at which a minor issue escalates into a catastrophic failure. Ignoring early warning signs guarantees a massive repair bill.
Ignoring a minor issue guarantees a catastrophic failure. The sequence is predictable and destructive.
A microscopic tear develops in the fold of an air spring. The vehicle sags slightly overnight.
The owner starts the car. The ride height sensor detects the sag and triggers the compressor. The compressor fills the bag, and the car looks normal. The owner ignores the issue.
The leak worsens. The compressor now runs while driving to keep the vehicle level. The driver might hear a low humming noise from the trunk or behind the front bumper.
The compressor exceeds its thermal limit. The internal seals melt. The motor burns out.
The system loses all pressure. The vehicle drops onto the hard rubber bump stops. The tires may rub against the fender liners. The car is now undrivable and requires a tow.
A simple, single-component replacement has now multiplied into a multi-part system overhaul. Procrastination multiplies the repair scope exponentially.
Finding a leak tests a mechanic's patience. We start with a visual inspection and a soapy water test. We spray a soap solution over the air springs, valve block fittings, and compressor lines. We look for bubbles forming, which indicates escaping air. However, many leaks are intermittent. A strut might only leak when the steering wheel is turned all the way to the left, stretching the rubber in a specific direction.
Electronic faults complicate the process. Modern systems use a dedicated control module. If a wire chafes against the chassis and shorts out, the module shuts down the entire system to protect itself. Tracing a broken wire through a main body harness takes hours of meticulous multimeter testing. You pay for this diagnostic time before any new parts are installed.
When faced with a failing system, owners must choose a path forward that aligns with their budget, vehicle value, and long-term ownership goals.
Repair Strategy | Primary Benefit | Primary Drawback | Best Suited For |
|---|---|---|---|
Full OEM Replacement | Preserves exact factory ride quality and original vehicle specifications. | Carries the absolute highest parts markup and labor rates. | Newer vehicles, cars under warranty, or high-value luxury models. |
High-Quality Aftermarket | Significant cost reduction while maintaining pneumatic load-leveling features. | Requires finding an independent shop willing to install non-OEM parts. | Mid-age vehicles where owners want to retain the factory ride dynamics on a budget. |
Coil Spring Conversion | Permanently eliminates all future pneumatic failures and diagnostic headaches. | Sacrifices adjustable ride height and results in a stiffer, less refined ride. | Older, depreciated vehicles used strictly for reliable daily transportation. |
This route appeals to purists. You drop the car at the dealership and authorize factory parts. The primary benefit is absolute certainty. The vehicle will ride exactly as it did on the showroom floor. The suspension geometry remains perfect.
The drawback is the sheer expense. Dealerships charge premium labor rates and full retail markup on parts. This strategy makes sense for vehicles still under a factory warranty, certified pre-owned programs, or high-dollar luxury models where aftermarket parts might negatively impact the resale value.
This is the pragmatic approach for most owners. You retain the dynamic load-leveling and smooth ride, but you avoid the dealership tax. The success criteria is maintaining the functional benefits of the pneumatic system while mitigating exorbitant markups.
Success depends on finding a competent independent shop. Many mechanics refuse to install parts they do not source themselves due to warranty liability. You must find a shop familiar with pneumatic systems that trusts your chosen aftermarket brand. The savings are substantial, and the upgraded engineering often outlasts the original factory components.
When air suspension repair costs become too high, a coil spring conversion kit can be a practical alternative. It replaces the air suspension with steel coil springs and standard shock absorbers, eliminating air leaks, compressor problems, and much of the system’s long-term maintenance. However, the vehicle will have a fixed ride height and lose automatic load leveling, so the rear may sag under heavy loads. Some vehicles also require an electronic bypass module to prevent suspension warning lights or other system errors after the conversion.
Making the right choice requires removing emotion from the equation and looking purely at the financial metrics and technical realities of your specific vehicle.
Emotions often cloud financial judgment when dealing with car repairs. We recommend a strict mathematical approach. Obtain a fully itemized repair quote. Next, research the realistic private-party sale value of your vehicle in its current condition.
If the repair quote exceeds twenty to thirty percent of the vehicle's total market value, fixing the pneumatic system is a poor investment. You will never recoup that money when you sell the car. At this threshold, a coil conversion kit makes the most financial sense. It keeps the vehicle functional and safe for daily driving without sinking massive capital into a depreciating asset.
Many owners purchase extended warranties specifically to cover complex suspension systems. Unfortunately, third-party warranty administrators are experts at denying claims.
You must read the exclusionary clauses in your contract. Many policies explicitly list rubber air springs, bladders, and shock absorbers as wear and tear items. They treat them exactly like brake pads or clutch discs. If a rubber bladder tears, they will deny the claim. If that torn bladder causes the compressor to burn out, they will deny the compressor claim as well, citing consequential damage from a non-covered part. Always demand pre-authorization from the warranty company before allowing a shop to tear down the vehicle.
Air suspension installation requires proper equipment and careful safety procedures. The vehicle should be securely supported so the suspension can move freely, and the system must be depressurized before disconnecting any air lines. A bidirectional scan tool may be needed to control the valve block and release pressure safely. New air springs should also be partially inflated before lowering the vehicle, as placing full vehicle weight on empty air bags can damage the rubber. Professional installation can help reduce these safety and installation risks.
Pneumatic suspension systems demand a dedicated maintenance budget. The components operate under extreme stress and have a finite lifespan. Rubber degrades, electrical relays stick, and compressors burn out. These expenses are an unavoidable reality of owning this technology. Ignoring the early warning signs guarantees a cascading failure that will multiply your repair bill.
Your strategy should match your vehicle's lifecycle. Use OEM or premium aftermarket parts for newer, high-value vehicles. Opt for a coil conversion kit if you are driving an older, heavily depreciated model and simply need reliable transportation.
Take the following steps to protect your vehicle and your wallet:
Inspect your vehicle's stance every morning before unlocking the doors to identify any sagging corners.
Listen to the compressor duty cycle; if it runs for more than ten seconds or triggers frequently while driving, schedule a diagnostic scan immediately.
Obtain itemized quotes for both an aftermarket repair and a steel coil conversion to compare your exact financial exposure.
Review the fine print of your extended warranty contract to confirm whether rubber pneumatic components are excluded as wear-and-tear items.
A: Most factory pneumatic components last between 80,000 and 120,000 miles. Lifespans vary based on climate, road conditions, and how frequently the vehicle carries heavy loads. Harsh winters and heavy road salt accelerate rubber degradation and sensor failure.
A: You should never drive a vehicle with a collapsed suspension. Driving on the bump stops destroys the vehicle's handling, damages the tires, and transfers severe impact force directly into the chassis. It also forces the compressor to run continuously, guaranteeing a secondary electrical failure.
A: Yes. You must always replace air springs and struts in pairs across the same axle. Rubber ages uniformly. If one side fails, the opposite side is nearing failure. Replacing only one side creates dangerous handling imbalances and puts excessive stress on the older component.
A: Yes. Converting to traditional steel coil springs permanently eliminates the need for expensive compressors, valve blocks, and rubber bladders. While the initial conversion kit requires an upfront investment, it completely removes the risk of future pneumatic system failures, drastically lowering long-term ownership expenses.
A: The most common early warning signs include a vehicle that sags in one corner after sitting overnight, a noticeably harsher ride quality, and a compressor that runs frequently or sounds louder than usual. Dashboard warning lights usually appear after the system has already sustained a significant fault.
A: While they do not use hydraulic fluid like traditional systems, many setups feature an air dryer attached to the compressor. This dryer contains desiccant beads that absorb moisture. Replacing these beads or the entire dryer unit periodically prevents internal moisture buildup, which causes rust and winter freeze-ups.
