To understand the mechanics of pneumatic leveling, we must first define what makes a suspension system effective. A proper suspension must isolate the cabin from road harshness, maintain a consistent tire contact patch with the pavement, support the gross vehicle weight, and instantly adapt to payload changes. Traditional steel springs manage this through fixed mechanical resistance. Pneumatic systems achieve these criteria by utilizing the compressible nature of gases.

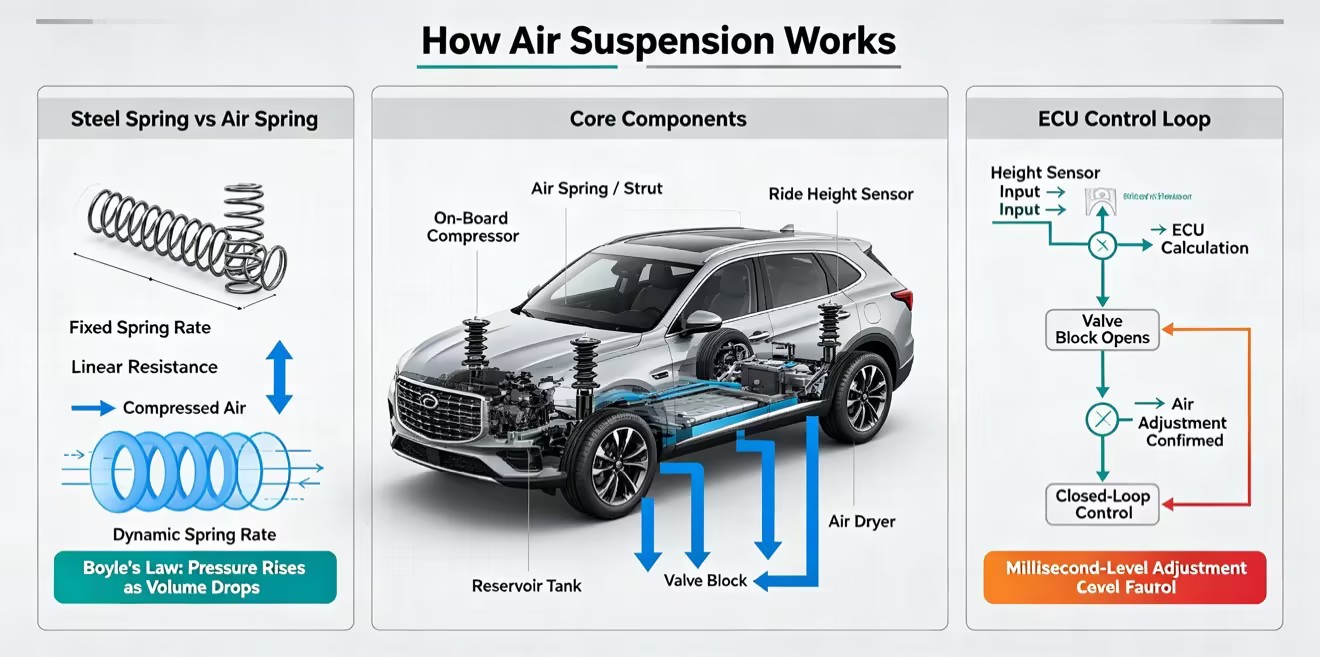

Air suspension uses compressed air to support the vehicle. Based on Boyle’s Law, air pressure increases as the air bag is compressed, creating greater resistance when the vehicle hits a bump or carries more weight. Unlike traditional steel springs with a fixed response, air springs can adjust their pressure by adding or releasing air. When heavy cargo causes the vehicle to sag, the system adds air to the rear bags until the vehicle returns to its normal ride height, helping maintain a level and stable ride under different loads.
Modern pneumatic setups rely on a sophisticated closed-loop electronic control system. The suspension ECU acts as the brain. It continuously processes telemetry data from various vehicle inputs. The module reads wheel speed, steering angle, lateral acceleration, and individual corner ride heights in milliseconds via the Controller Area Network (CAN) bus.
When the ECU detects a deviation from the target ride height, it instantly commands the solenoid valve blocks to open. This routes highly pressurized air into the specific struts that need it. Once the sensors confirm the chassis is level, the valves close. This constant, high-speed polling and adjustment cycle ensures the vehicle remains stable and perfectly aligned under all driving conditions. The ECU also monitors compressor temperature and reservoir pressure to prevent system overload.

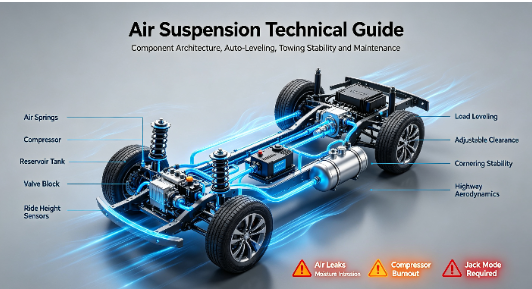

An Automotive Air Suspension System is a complex network of mechanical, pneumatic, and electronic parts working in unison. Understanding the function of each distinct component helps you accurately diagnose and troubleshoot issues in the garage.
Air springs replace traditional steel coil springs and support the vehicle’s weight. They are typically made from durable rubber and polyurethane, often reinforced to handle high pressure and road debris. On rear axles, air springs are commonly installed between the axle and chassis. On front axles, they may be integrated with the shock absorber to form an air strut. This compact design saves space while helping control both ride height and suspension performance.
The system requires a dedicated, onboard air compressor to generate the necessary pneumatic pressure. These are compact, electrically driven piston pumps capable of producing outputs exceeding 200 PSI. They feature internal thermal overload switches that shut the pump down if it gets too hot during operation.
Because compressors take time to spool up and generate pressure, modern systems incorporate a reservoir tank. The tank stores pre-pressurized air. When the ECU demands a sudden ride-height adjustment, it draws instantly from the reservoir tank rather than waiting for the compressor. This allows for silent, immediate leveling and significantly reduces the duty cycle and wear on the compressor motor.
The air dryer is the most vital protective component in the entire network. Ambient air contains moisture. When air is compressed, this moisture condenses into liquid water. The air dryer forces the compressed air through a bed of silica desiccant beads. These beads strip away the moisture before it enters the reservoir or valve blocks.
Without a functioning dryer, water accumulates inside the system. This leads to severe internal corrosion of the solenoid valves. In winter months, this trapped water freezes solid inside the air lines, completely disabling the suspension until the vehicle thaws out in a heated garage.
The solenoid valve block controls how pressurized air moves through the suspension system. Based on ECU commands, it directs air through durable air lines to the air springs at each corner of the vehicle. When the vehicle needs to be lowered, the valve block releases excess air either back into the reservoir or into the atmosphere. This allows the system to quickly adjust ride height and maintain proper vehicle leveling.
Ride height sensors provide the baseline telemetry for the entire operation. These are typically rotary potentiometers or Hall-effect sensors mounted to the chassis. Small mechanical linkage rods connect them to the control arms. As the suspension moves up and down, the linkage rotates the sensor, altering its electrical resistance or magnetic field.
The ECU translates this signal into a precise measurement of the distance between the chassis and the ground. If a linkage rod snaps or seizes due to rust, the sensor sends erratic data, causing the vehicle to lean heavily to one side.
You must differentiate between the two primary pneumatic architectures used in the industry today. They operate differently and require different maintenance approaches.
System Type | Operation Mechanism | Primary Advantages | Primary Disadvantages |
|---|---|---|---|
Open-Loop | Draws ambient air from the atmosphere, compresses it, and vents exhaust air back outside when lowering. | Simpler architecture, easier to diagnose, common in aftermarket kits and older vehicles. | Constantly introduces new moisture into the system, requiring frequent desiccant replacement. Slower response times. |
Closed-Loop | Stores and recycles a fixed volume of pressurized gas (often pure nitrogen) between the bags and the reservoir. | Extremely fast leveling, zero moisture intrusion, highly resistant to cold-weather freezing. | Requires specialized equipment to recharge nitrogen. Difficult to service without dealership tools. |
Acquiring pneumatic leveling capabilities generally falls into two distinct categories: purchasing a vehicle with a factory-integrated setup or retrofitting a vehicle using aftermarket components. Each path serves entirely different operational goals and integration levels.
Factory air suspension systems are closely integrated with the vehicle’s electronic controls, including stability control, ABS, and driving modes. For example, selecting Sport Mode may automatically lower the vehicle and adjust suspension stiffness for better handling. Many OEM systems also use closed-loop nitrogen designs for quieter and more reliable operation. However, factory systems often use proprietary parts and may require specialized diagnostic tools to recalibrate ride height sensors after repairs.
Aftermarket air suspension offers more flexibility for towing, load support, and custom ride height. Truck owners can add helper air bags alongside the factory leaf springs to reduce rear-end sag when carrying or towing heavy loads. More advanced aftermarket kits can replace the factory suspension entirely, allowing greater control over ride height. These systems typically require additional air lines, compressors, a reservoir tank, and a separate control system.
For those installing aftermarket setups, choosing the right management system dictates how the vehicle behaves daily.
Pressure-Based Management: Estimates the vehicle's ride height by monitoring the PSI inside each air bag. It is simpler to install because it requires no external sensors. However, it is highly susceptible to payload variations. Adding passengers increases the bag pressure, tricking the system into thinking the vehicle is higher than it actually is.
Height-Based Management: Utilizes dedicated physical sensors at each wheel to measure actual ground clearance. This ensures exact, repeatable leveling regardless of how much weight is loaded into the cabin or bed. It requires more effort to install due to the custom fabrication needed for the sensor brackets.

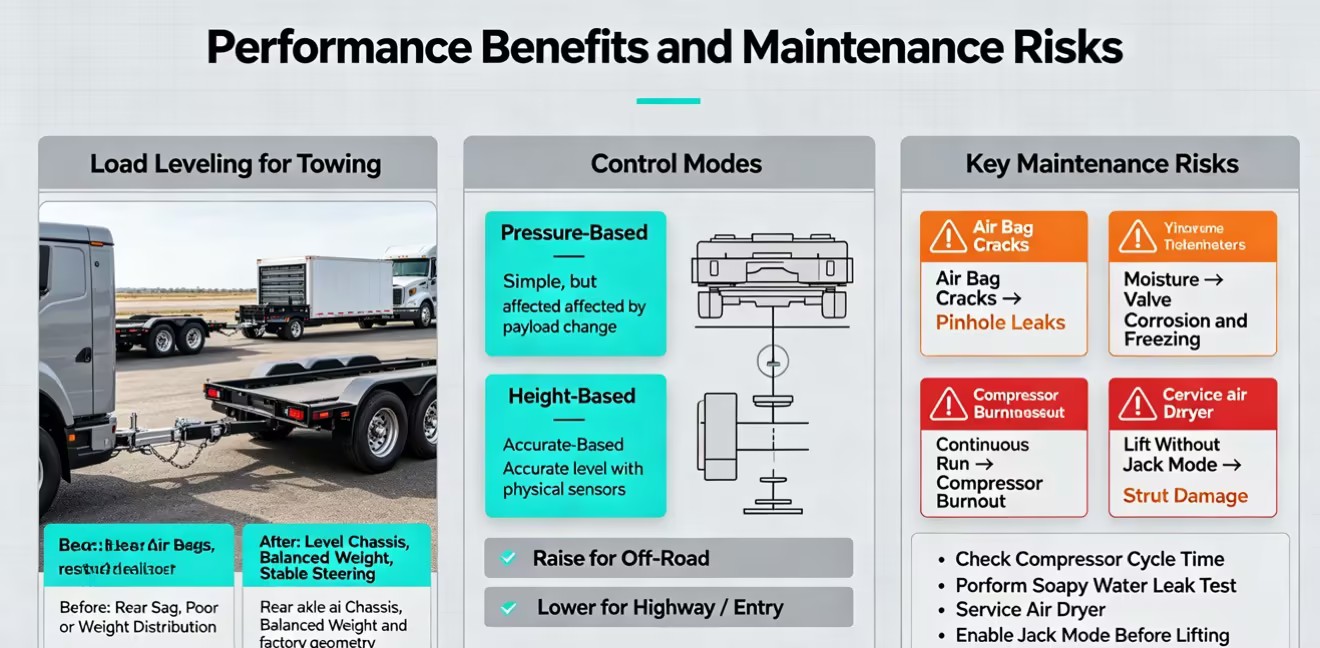

The technical complexity of pneumatic setups translates directly into tangible, real-world driving benefits. By mapping technical capabilities to performance outcomes, the operational value of these systems becomes clear.
When you drop a heavy trailer onto a traditional hitch, the rear of the tow vehicle sags. This unloads the front tires, severely compromising steering traction and braking efficiency. It also causes the headlights to blind oncoming traffic.
An active pneumatic system detects this rear-end squat immediately. It pumps high-pressure air into the rear axle bags until the chassis returns to a perfectly level state. This restores the proper weight distribution across all four tires, preserves the factory steering geometry, and makes towing heavy loads significantly safer and more stable.
Beyond straight-line comfort, active air systems drastically improve handling dynamics. During aggressive cornering, the vehicle's weight naturally shifts to the outside wheels, causing body roll. Advanced ECUs detect this lateral acceleration and instantly increase the air pressure in the outside struts. This effectively stiffens the spring rate on the fly to keep the body flat.
At highway speeds, the system automatically lowers the entire vehicle by a fraction of an inch. This reduces the frontal surface area, improving aerodynamic efficiency, reducing wind noise, and enhancing high-speed stability.
Air suspension allows off-road vehicles to adjust ground clearance when needed. Drivers can raise the vehicle to clear deep snow, rocks, or rough trails, then return it to the normal ride height for road driving. The suspension can also be lowered to make it easier for passengers to enter and exit or to load heavy cargo.
While the performance advantages are substantial, maintaining a pneumatic suspension requires a proactive approach. These systems introduce specific failure points that do not exist in traditional steel-spring vehicles. Understanding these risks prevents minor issues from escalating into major component failures.
Common air suspension problems include worn air bags and moisture buildup. Over time, road salt, extreme temperatures, and repeated movement can cause the rubber air bags to crack and develop small leaks. Moisture can also enter the system if the desiccant filter becomes saturated, leading to corrosion inside the valve block and causing the valves to stick or malfunction.
A minor air leak in a single strut is rarely an isolated problem; it triggers a destructive domino effect. If a bag has a pinhole leak, the vehicle will slowly lose ride height while parked. When you start the engine, the compressor must run to refill the bag.
Because the leak constantly vents pressure as you drive, the compressor is forced to run continuously to maintain the target height. Compressors are designed for short, intermittent duty cycles. Running continuously causes them to overheat rapidly. This melts the internal piston rings, scorches the electrical relays, and ultimately results in complete compressor burnout. A simple leaking bag quickly destroys the most vital component in the system.
Tracing faults in a pneumatic network requires patience and specific diagnostic strategies. Micro-leaks are notoriously difficult to find because they often seal themselves when the suspension is at a specific height. They only leak when the bag folds over the crack.
Fill a spray bottle with water and a heavy concentration of dish soap.
Raise the vehicle to its highest suspension setting to expose the folds of the air bags.
Spray the soapy solution generously over the air bags, the brass fittings, and the valve block connections.
Watch closely for the formation of thick, white foam. Large bubbles indicate a massive leak, but shaving-cream-like foam indicates a slow micro-leak.
Listen to the compressor cycle times. If the pump activates at every stoplight, the system is actively fighting a leak.
Whenever you lift a vehicle equipped with active air suspension off the ground for maintenance, you must disable the system. Most manufacturers include a specific Jack Mode or Service Mode accessible via the infotainment screen or a dedicated button sequence.
If you lift the vehicle without enabling this mode, the ride height sensors detect the wheels dropping. The ECU assumes the vehicle is high-centered on an obstacle. It will attempt to compensate by venting all the air from the struts. When you lower the vehicle back to the ground, it will crash down onto fully deflated bags. This pinches the rubber bladders, blows out the crimp rings, and triggers severe ECU recalibration errors.
Freezing temperatures severely test pneumatic components. Cold weather causes rubber to lose its pliability, making aging air bags more susceptible to cracking. In open-loop systems, any moisture that has bypassed the air dryer will condense and freeze inside the narrow plastic air lines.
This ice blockage prevents air from transferring, leaving the vehicle stuck in a lowered or uneven position until the ambient temperature rises enough to thaw the lines. Modern closed-loop nitrogen systems largely mitigate this risk, as pure nitrogen is a dry gas that does not contain moisture.
Deciding whether to maintain a pneumatic setup requires evaluating the vehicle's lifecycle, the primary use case, and your tolerance for specialized maintenance. The overall utility is heavily influenced by how you utilize the vehicle on a daily basis.
When selecting a vehicle, the air suspension option provides immediate utility. For drivers who frequently tow heavy trailers, carry varying payloads, or require adjustable ground clearance for off-road access, this setup pays immediate dividends in safety and comfort. Similarly, installing a high-quality, height-based aftermarket kit transforms the vehicle's capabilities entirely, allowing for extreme load management.
You must view air struts as consumable wear items, much like brake pads or tires, rather than permanent structural components. Depending on climate, road conditions, and whether the vehicle is garage-kept, the rubber bladders typically require replacement between 80,000 and 120,000 miles.
Proactive owners who replace leaking bags immediately, change the compressor relay regularly, and service the desiccant filter experience excellent long-term reliability. Neglecting these systems guarantees cascading component failures.
As vehicles age, owners eventually face a critical decision when the pneumatic system requires a major overhaul. If the required repairs involve replacing multiple struts, the valve block, and the compressor simultaneously, the effort may exceed the practical utility of an older, high-mileage vehicle.
In these scenarios, coil spring conversion kits offer a highly practical fallback solution. These kits replace the entire pneumatic network with traditional steel coils and passive shock absorbers. They include electronic bypass modules that plug into the wiring harness to trick the ECU, preventing dashboard warning lights. While you lose the dynamic load-leveling and adjustable ride height, you gain permanent, maintenance-free reliability for the remainder of the vehicle's lifespan.
Take the following actions to maintain or upgrade your vehicle's suspension setup:
Inspect your current vehicle's compressor cycle times by listening for the pump activating while parked or idling at stoplights.
Perform a soapy water leak test on all accessible air lines, brass fittings, and visible rubber bladders before winter weather sets in.
Consult a specialized suspension technician to verify the health of your air dryer and replace the desiccant filter if moisture is detected.
Activate Jack Mode or Service Mode every single time you place a floor jack under the chassis to prevent bladder damage.
Request technical specifications for aftermarket load-leveling kits if you frequently tow heavy trailers and experience rear-end sag.
A: Air suspension bags generally last between 80,000 and 120,000 miles. Their exact lifespan depends heavily on environmental factors. Vehicles operated in harsh climates with heavy road salt, extreme cold, or extreme heat experience faster rubber degradation. Garage storage and regular undercarriage cleaning help extend the life of the bladders.
A: Jack Mode is an electronic lockout feature that disables the suspension's automatic leveling system. You must activate it before lifting the vehicle on a hoist or with a floor jack. If disabled, the ECU detects the wheels dropping, assumes the vehicle is stuck, and vents all air pressure, which damages the struts when lowered.
A: Driving on a collapsed or broken air suspension is highly dangerous and strongly discouraged. It eliminates the vehicle's ability to absorb impacts, leading to severe damage to the tires, axles, and chassis. Furthermore, driving with a massive air leak forces the compressor to run continuously, guaranteeing complete motor burnout.
A: Yes, it offers marginal but measurable improvements in fuel economy. Many modern systems automatically lower the vehicle's ride height when traveling at sustained highway speeds. This reduces the amount of air flowing under the chassis, lowering aerodynamic drag and improving overall efficiency, which is particularly beneficial for extending EV range.
A: Many modern OEM closed-loop systems are specifically designed to use pure nitrogen rather than ambient air. Nitrogen is a dry gas, meaning it does not introduce moisture into the system. This eliminates internal corrosion and prevents the valve blocks and air lines from freezing during severe winter weather.
A: Symptoms of a failing compressor include excessive mechanical grinding noises during operation, the vehicle taking significantly longer than usual to reach its target ride height, frequently blown suspension fuses, or the compressor failing to turn on entirely. These issues often stem from an unaddressed leak that overworked the motor.
