A vehicle sagging heavily on one side, a harsh ride over minor bumps, or the constant hum of an overworked compressor are immediate physical symptoms of a failing pneumatic system. When these signs appear, you face a direct conflict between the need for vehicle mobility and the severe safety, structural, and operational risks of driving a compromised heavy vehicle. Ignoring these symptoms transforms a manageable mechanical issue into a cascading failure that threatens vehicle control. Addressing this problem requires shifting focus from the initial panic of a sudden drop in ride height to a structured, mechanical evaluation. You must determine whether the vehicle is physically safe to move. We will look at the secondary damage occurring with every mile driven and evaluate the most effective repair or conversion pathways available. By diagnosing the root cause, you can make an informed decision that prioritizes safety while protecting the vehicle's structural integrity.
Immediate Safety: Driving with a completely collapsed air suspension drastically alters vehicle handling, increases braking distance, and poses a severe safety risk at highway speeds.
Secondary Damage: Ignoring a minor air leak forces the air compressor to run continuously, virtually guaranteeing premature (and expensive) compressor burnout and potential chassis damage.
Hidden Liabilities: Operating a vehicle with a known suspension failure can void insurance coverage in the event of an accident due to negligence.
Solution Pathways: Owners face a critical choice between restoring the factory ride quality (OEM/aftermarket air parts) or permanently eliminating the failure point (coil spring conversion kits).
Cost-to-Value: The decision hinges on vehicle age, intended use (towing vs. commuting), accurate diagnosis (sensors vs. struts), and long-term ownership plans.
Table of Contents
Defining what constitutes a drivable vehicle requires establishing strict baseline criteria for safe operation. A vehicle is only safe to move if it maintains adequate tire clearance within the wheel wells, predictable steering geometry, and fully functional braking capabilities. When people ask, can you drive with bad air suspension, the answer depends entirely on whether the vehicle meets these non-negotiable safety standards. If the chassis is resting directly on the tires or the steering binds during turns, the vehicle is grounded.
There is a massive difference between limping a vehicle to a local repair shop and attempting to maintain a daily commute on a compromised system. Limping a vehicle requires strict parameters to prevent catastrophic failure during transit. Daily commuting on a failed system introduces unacceptable risks. Continuous operation without proper shock absorption guarantees further mechanical degradation and puts the driver, passengers, and other motorists in danger.
If you must move the vehicle to a repair facility, follow these strict operational rules:
Keep vehicle speeds below 25 miles per hour to prevent sudden loss of control over road imperfections.
Activate hazard lights to warn surrounding traffic of your limited mobility and reduced speed.
Map out a route that avoids speed bumps, steep inclines, and heavily potholed roads.
Limit the total driving distance to less than five miles; anything further requires a flatbed tow truck.
Keep the windows rolled down slightly to listen for any metal-on-metal scraping or tire rubbing sounds.
The physics of a bottomed-out suspension fundamentally alter how a vehicle interacts with the road. Without the pneumatic struts to absorb kinetic energy, road impacts transfer directly into the chassis. This lack of shock absorption frequently leads to a loss of tire contact with the road surface over bumps. When tires lose contact, the driver loses steering control and braking friction.
A collapsed suspension drastically lowers the vehicle's center of gravity unevenly. This uneven weight distribution can ironically increase rollover risk during evasive maneuvers due to unpredictable weight transfer. Anti-lock braking systems (ABS) and electronic stability control rely on predictable suspension behavior. A failed system compromises these safety nets, making emergency handling entirely unpredictable. The sensors expect a specific ride height to calculate yaw and pitch; when the vehicle is slammed to the bump stops, the computer receives skewed data, often resulting in premature or delayed ABS activation.
Operating an unsafe vehicle carries significant legal ramifications. Law enforcement can cite drivers for operating a vehicle that poses a hazard to public safety, especially if dragging components or severe sagging are visible. Beyond traffic citations, insurance adjusters take a hard line on accidents caused by neglected mechanical failures.
If an investigation reveals that a crash resulted from a known, pre-existing suspension collapse that the owner chose to ignore, the insurance company may classify this as gross negligence. This classification can lead to denied claims, leaving the vehicle owner personally liable for property damage and medical expenses. Adjusters will look at maintenance records and physical evidence, such as long-term tire scrubbing marks inside the wheel well, to determine if the failure was sudden or a neglected ongoing issue.
Not all suspension faults require the same emergency response. Providing a framework to assess the current situation helps prevent unnecessary towing while protecting the vehicle from further damage. Understanding the difference between a slow leak and a catastrophic blowout is the first step in proper diagnostics.
A slow leak typically presents as a vehicle that drops unevenly overnight but successfully raises back to the correct ride height once the engine starts and the compressor engages. While this indicates a failing seal or micro-puncture in an airbag, the vehicle can usually maintain pressure during short trips. Conversely, a blown airbag or a completely dead compressor results in a complete collapse. The vehicle remains resting on its bump stops regardless of how long the engine runs. A complete collapse means the vehicle has zero suspension travel, rendering it unsafe for anything other than a low-speed crawl onto a flatbed tow truck.

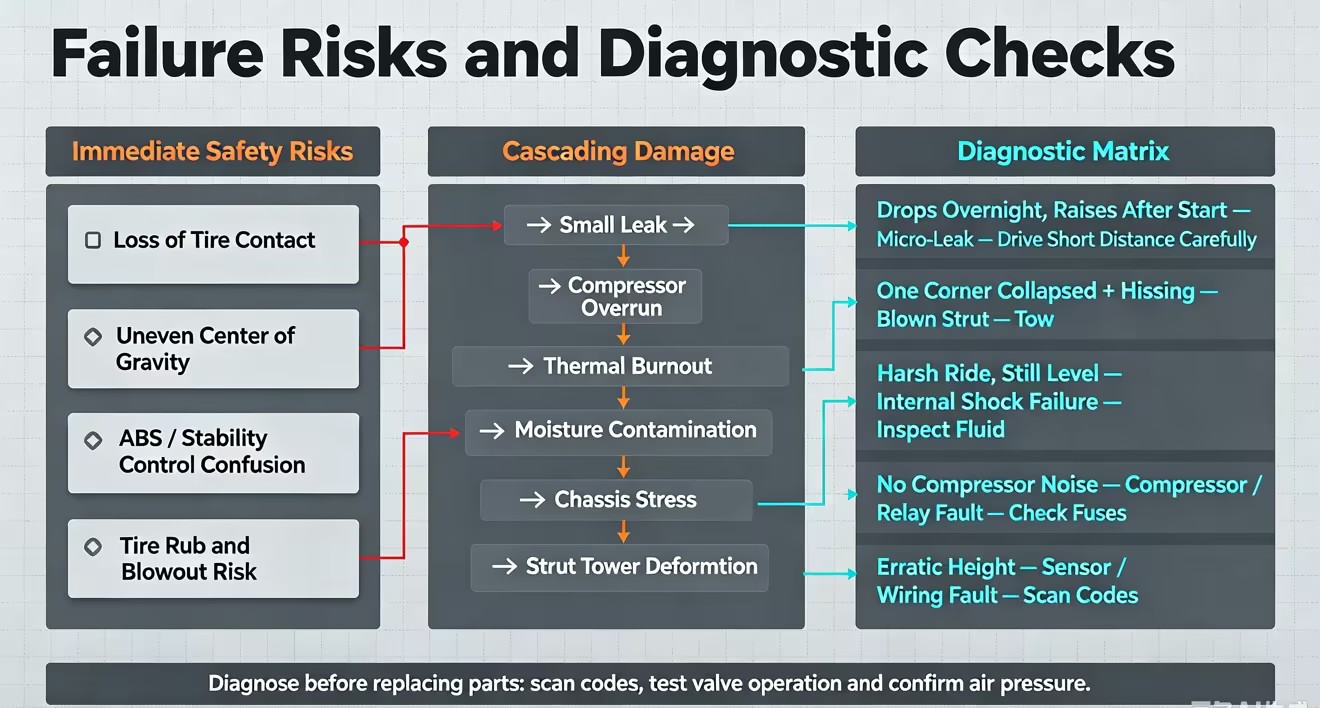

To help categorize the failure, use the following diagnostic matrix:
Observed Symptom | Probable Mechanical Cause | Drivability Status | Immediate Action Required |
|---|---|---|---|
Vehicle drops overnight, raises when started | Micro-leak in air spring or airline fitting | Drivable for short distances | Schedule repair; monitor compressor run time |
One corner completely collapsed, hissing sound | Blown air strut or ruptured bladder | Do Not Drive | Tow to shop; replace affected strut |
Vehicle sits level but rides extremely harsh | Failed adaptive damping shock (internal) | Drivable with caution | Avoid high speeds; inspect shock for fluid leaks |
No compressor sound, vehicle fully lowered | Burned out compressor motor or blown relay | Do Not Drive | Check fuses; prepare for compressor replacement |
Erratic raising and lowering while driving | Faulty ride height sensor or wiring harness | Drivable to nearest shop | Perform OBD-II scan to isolate the bad sensor |
Air suspension problems are not always caused by a failed air strut. A faulty ride height sensor or stuck valve block can cause one corner to sag or prevent the vehicle from raising even when the air springs and compressor are working properly. An OBD-II scan can identify fault codes before expensive parts are replaced. Technicians may also use a bidirectional scan tool to test the valve block and determine whether the problem is related to the strut, sensor, valve block, or wiring.
Certain symptoms dictate that the vehicle must be parked immediately, with no exceptions for limping to a shop. These non-negotiable grounding criteria include:
Tires visibly rubbing against the wheel wells or fenders, which can cause a high-speed blowout.
Burning smells, whether electrical (indicating a melting compressor harness) or rubber (indicating tire friction).
Severe steering pull that requires excessive force to keep the vehicle in a straight line.
Loud, metal-on-metal grinding noises indicating that suspension components are physically clashing.
Brake lines pulled taut due to extreme suspension geometry changes.
Choosing to ignore a suspension warning light or a slightly sagging corner triggers a chain reaction of mechanical failures that exponentially increases the final repair bill. The pneumatic system operates as a closed loop; a failure in one component immediately places destructive stress on the rest of the system.
The mechanical reality of an air suspension compressor is that it is designed strictly for intermittent use. It is meant to run for a few seconds to adjust ride height and then shut off. When a minor leak develops in an airbag or an air line, the system loses pressure continuously. To compensate, the compressor runs non-stop in a desperate attempt to keep the vehicle level.
This continuous operation causes the compressor's internal components to overheat rapidly. The piston rings inside the compressor wear down, reducing its output efficiency. Eventually, the thermal overload switch may fail, causing the electric motor to melt its internal windings or fuse the main power relay shut. A minor component leak quickly escalates into a massive repair when the overworked compressor seizes entirely. Furthermore, excessive moisture builds up when the compressor overruns, saturating the air dryer's desiccant beads and pushing water directly into the sensitive valve block solenoids.
Bump stops are designed to prevent metal-on-metal contact during severe suspension impacts, not to support the vehicle continuously. When air suspension collapses and the vehicle rides on the bump stops, road impacts transfer directly into the chassis. Over time, this can damage the subframe, engine mounts, and strut towers. In severe cases, repeated impacts may deform the strut tower, requiring professional body repair and significantly increasing repair costs.
Altered ride height completely destroys the vehicle's wheel alignment. When the suspension collapses, the wheels are pushed outward at the bottom, creating extreme negative camber. This forces the inner edge of the tires to bear the entire weight of the vehicle, leading to rapid, uneven tire wear that can destroy a new set of tires in just a few hundred miles. The toe angle also shifts drastically, causing the tires to scrub sideways against the pavement rather than rolling smoothly forward.
The drivetrain suffers immensely under these conditions. Constant velocity (CV) joints, axles, and control arm bushings are engineered to operate at specific angles. A collapsed suspension binds these components at extreme angles. This binding tears the rubber CV boots, allows lubricating grease to escape, and accelerates the destruction of the vehicle's driveline. You will often hear a rhythmic clicking sound when turning, indicating that the CV joints have been compromised by the altered suspension geometry.
A suspension failure is always inconvenient, but it becomes a critical emergency if it occurs while the vehicle is under heavy load. The dynamics of a heavy vehicle change drastically when the leveling system fails, requiring immediate and calculated action from the driver.
The specific danger of a failure while towing a trailer or carrying a maximum payload cannot be overstated. The pneumatic system is responsible for keeping the vehicle level, ensuring the front wheels maintain enough traction to steer and brake. If the rear suspension blows out while towing, the tongue weight of the trailer will crush the rear of the vehicle down to the pavement.
This simultaneously lifts the front wheels, drastically reducing steering control and braking power. The vehicle becomes highly unstable and prone to jackknifing or losing control entirely. The headlights will also aim directly up into the eyes of oncoming traffic, creating a severe visibility hazard at night. The rear axle may also make contact with the vehicle's frame, risking damage to the differential housing and rear brake lines.
If you experience a sudden drop in ride height or hear a loud pop while under load, follow these emergency mitigation steps:
Maintain a firm grip on the steering wheel and avoid sudden braking, which can induce a spin or cause the trailer to push the tow vehicle out of its lane.
Gradually decelerate by lifting off the throttle and safely pull over to the widest available shoulder or emergency lane.
Activate hazard lights immediately to warn approaching traffic of your disabled status.
If towing, safely detach the trailer if you are in a secure location. Removing the tongue weight may restore enough front-wheel traction to maneuver the vehicle onto a tow truck.
Deploy reflective triangles or road flares at least 100 feet behind the trailer to secure the scene.
Never attempt to limp a bottomed-out vehicle while it is still bearing a heavy load or towing a trailer; doing so guarantees severe structural damage and risks a catastrophic accident.
Once the vehicle is safely off the road and the damage is assessed, owners must navigate the repair process. The market offers three primary solution categories for a failed system, each with distinct features, outcomes, and trade-offs.
Replacing the failed components with Original Equipment Manufacturer (OEM) or premium aftermarket pneumatic parts is the traditional route. This approach restores the factory load-leveling capabilities, maximum towing capacity, and the signature luxury ride quality the vehicle was designed to deliver. It keeps the vehicle operating exactly as the engineers intended.
However, the trade-offs are significant. This retains the complex pneumatic system—including lines, compressors, and valve blocks—meaning the system will inevitably face similar wear and tear failures in the future. You are essentially resetting the clock on components that have a known lifespan. Sourcing OEM parts directly from the dealership also carries a premium markup compared to independent suppliers.
For owners looking to minimize immediate expenses, targeted repair focuses solely on the failed component, such as replacing a single leaking airbag, a broken strut, or a faulty ride height sensor. This addresses the immediate fault without the expense of overhauling the entire system. Mechanics will often use a soapy water solution sprayed over the air bladders to pinpoint the exact location of a micro-leak before replacing a single corner.
The primary risk of this approach is mismatched wear. Replacing one airbag while leaving a ten-year-old airbag on the opposite side often leads to an imbalanced ride. The new strut will have stiffer damping characteristics than the worn strut on the other side. Additionally, the older, unreplaced components remain potential failure points that could leave you stranded again shortly after the repair.
A highly popular alternative for aging vehicles is the installation of a coil spring conversion kit. This approach completely removes the pneumatic struts, compressor, and air lines, replacing them with traditional steel coil springs and gas shocks. The primary outcome is the permanent elimination of pneumatic failures; steel springs do not leak air or suffer from compressor burnouts.
The trade-offs include the loss of adjustable ride height, a potential reduction in heavy towing stability, and a permanently altered ride feel. The vehicle can no longer auto-level under load. The ride is often described as stiffer or more truck-like compared to the original luxury ride, as steel springs use a linear or progressive spring rate rather than the infinitely variable rate of compressed air.
Choosing between repairing the existing system or converting to steel coils requires a strategic evaluation of the vehicle's lifecycle, the owner's budget, and how the vehicle is primarily used.
A decision matrix based on the vehicle's lifecycle helps clarify the best path forward. Consider these factors when making your choice:
Vehicle Age and Resale Value: If the vehicle is relatively new, retains a high resale value, and is still under some form of warranty or extended coverage, lean heavily toward OEM or aftermarket pneumatic replacement. Buyers of luxury vehicles expect the factory ride quality, and converting to coils can negatively impact the vehicle's resale value.
Repair Cost vs. Vehicle Value: If the vehicle is older and the cost of a comprehensive pneumatic repair exceeds twenty percent of the vehicle's total market value, lean toward a coil conversion. At this stage in the vehicle's lifecycle, budget certainty and high-mileage reliability outweigh the need for adjustable ride height.
Climate and Environment: Vehicles operated in harsh winter climates with heavy road salt usage often suffer from accelerated corrosion on aluminum air fittings and valve blocks. In these environments, a steel coil conversion eliminates the corrosion-prone pneumatic fittings entirely.
Evaluate how each solution scales with your specific lifestyle and utility needs. If you frequently tow heavy boats, travel trailers, or haul significant payloads, the dynamic leveling of a pneumatic system is vastly superior. It keeps the headlight aim correct and maintains steering geometry under varying weights.
Coil conversions rely on static load rates. A coil spring rated for a comfortable daily commute will sag significantly when a heavy trailer is attached. If you choose a conversion kit and plan to tow, you must select heavy-duty springs. These heavy-duty springs will prevent sagging under load but will result in a very harsh, bouncy ride when the vehicle is unloaded.
Whether you choose to repair the factory system or convert to coils, the installation process carries specific technical risks that must be managed to ensure vehicle safety and electronic compliance.
DIY air suspension repair requires proper tools and careful safety procedures. Pressurized air lines must be safely depressurized with a diagnostic tool before any fittings are disconnected. The vehicle must also be securely supported with heavy-duty jack stands to prevent sudden drops while working underneath. Because these repairs involve high-pressure air and specialized lifting equipment, professional installation is generally recommended for most owners.
Modern vehicles integrate the suspension system deeply into the main Engine Control Unit (ECU). Simply unplugging a blown air strut and bolting in a steel coil spring will instantly trigger a cascade of dashboard warnings. In some vehicles, this fault restricts the vehicle to a low-speed limp mode, disables the traction control, or limits engine power.
Quality conversion kits mitigate this by including electronic bypass modules. These modules plug into the factory wiring harness and send a continuous normal signal to the ECU. This prevents dashboard errors and maintains full electronic compliance with the vehicle's onboard computers. When replacing pneumatic parts, the new ride height sensors must be electronically calibrated using a scan tool to ensure the vehicle sits perfectly level.
Measure your vehicle's ride height at all four corners with a tape measure to identify uneven sagging before driving.
Listen closely near the wheel wells after turning off the engine to detect any hissing sounds indicating an active air leak.
Monitor your air compressor's run time; if it runs for more than 60 seconds after startup, schedule a diagnostic scan immediately.
Consult a certified suspension specialist to perform an OBD-II scan and physically inspect the valve block and struts.
Order a complete coil conversion kit with an electronic bypass module if you decide to permanently eliminate the pneumatic system on a high-mileage vehicle.
A: You should only drive long enough to reach a safe parking spot or a local repair shop. Keep speeds under 25 mph, activate your hazard lights, and avoid all bumps. Driving further risks severe chassis damage, ruined tires, and complete loss of vehicle control.
A: The vehicle will experience a sudden, harsh drop in ride height, usually accompanied by a loud pop or hissing sound. The ride will instantly become incredibly rough, steering will feel heavy, and you must perform emergency maneuvering to safely pull over.
A: A blown airbag usually results in an audible hissing sound and a corner that refuses to lift entirely. A faulty sensor often causes the vehicle to sit unevenly but still hold air pressure, or it may randomly raise and lower without losing pressure.
A: Converting to steel springs is generally more cost-effective over the long term because it permanently eliminates pneumatic components like compressors and valve blocks. However, fixing a single minor air leak upfront may cost less than buying a full conversion kit.
A: Yes. Without pressurized air struts to absorb kinetic energy, the vehicle rests on solid rubber bump stops. Every road imperfection transfers directly into the cabin, resulting in an extremely harsh, jarring, and bumpy ride that damages the chassis.
A: Symptoms of a bad compressor include complete silence when the car is started, blown suspension fuses, a burning electrical smell, or a vehicle that refuses to lift despite having no audible air leaks in the struts or lines.
A: Absolutely. A collapsed suspension forces the wheels into extreme negative camber and misaligns the toe angles. This drags the inner edge of the tires across the pavement, rapidly degrading the tread and ruining tires in a very short distance.
