The mechanical trade-off between infinite adjustability and absolute reliability defines the modern suspension debate across automotive and mountain biking applications. Selecting the incorrect suspension architecture compromises load management. It also leads to excessive long-term maintenance burdens or a severe mismatch between vehicle dynamics and terrain requirements. Drivers and riders alike must understand the mechanical realities of their equipment to maximize performance. This guide provides a technical breakdown of pneumatic and mechanical spring systems. We evaluate their physical properties, inherent failure modes, and lifecycle economics. By understanding these variables, you establish a definitive decision framework for heavy towing, highway commuting, and high-performance off-road applications. When comparing air suspension vs coil suspension, success depends entirely on matching the technology to your specific operational environment.

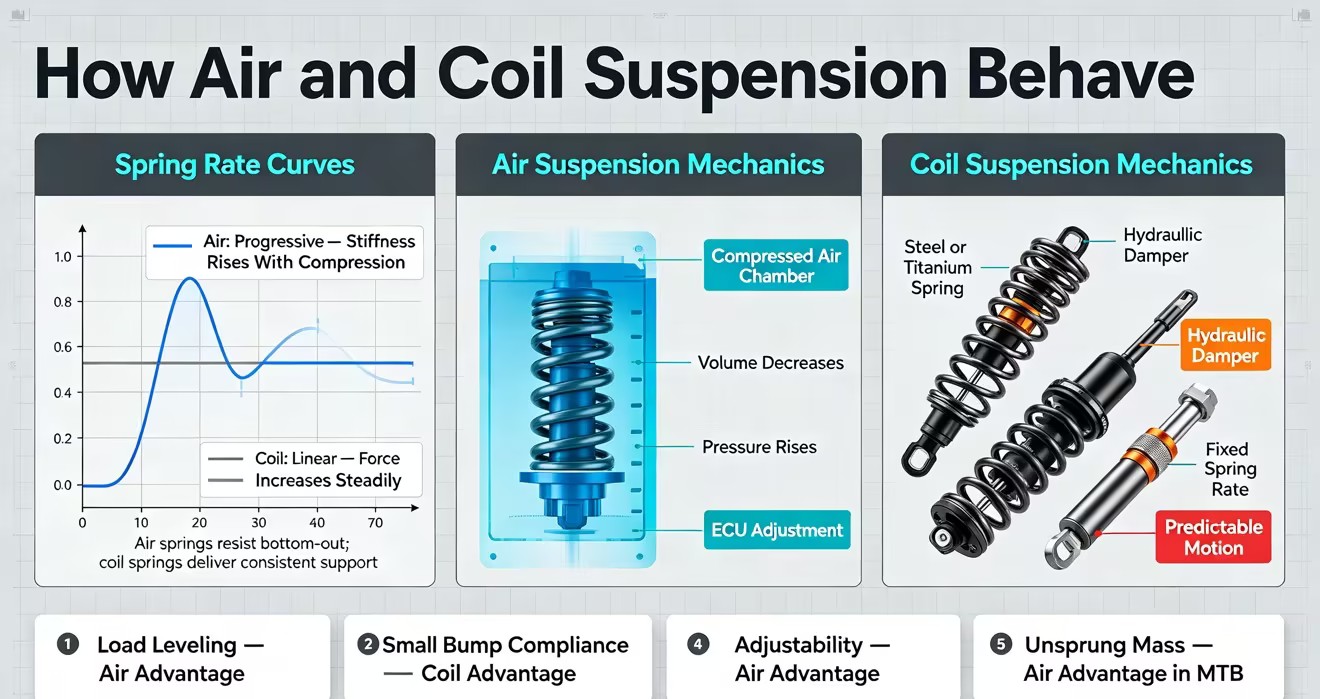

Progressive vs. Linear Dynamics: Air suspension inherently provides a progressive spring rate (increasing resistance as it compresses), preventing bottom-outs under heavy loads. Coil spring suspension delivers a linear rate, offering consistent support and superior small-bump compliance.
Maintenance and Failure Modes: Coil systems offer "set-and-forget" reliability with near-zero failure risk. Air systems require ongoing maintenance and are susceptible to pneumatic leaks, compressor failures, and temperature-induced pressure fluctuations.
Application Bias: Air suspension is the superior choice for frequent heavy towing, load leveling, and achieving the smoothest ride possible on highways. Coil suspension dominates in scenarios demanding maximum durability, cost-efficiency, and maximum traction over high-frequency chatter.
Table of Contents

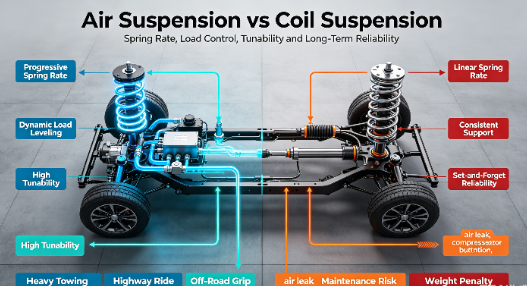

Air suspension replaces traditional steel springs with air springs, a compressor, sensors, and electronic controls. The system uses compressed air to support the vehicle and automatically adjusts air pressure to maintain the correct ride height under different loads. As the air spring compresses, pressure increases and the suspension becomes stiffer, helping prevent bottoming out under heavy loads or impacts. Air suspension is also highly adjustable: automotive systems can change pressure based on payload, speed, and driving mode, while mountain bike air shocks can use volume spacers to adjust how quickly the suspension becomes firmer during compression.
A traditional Coil Spring Suspension operates on purely mechanical principles. The architecture consists of a heavy-duty steel or titanium wound spring paired with a hydraulic damping system. The spring supports the vehicle weight. The hydraulic damper controls the speed of the spring's oscillation. This mechanical simplicity forms the foundation of its legendary reliability. Mechanics favor this setup for off-road rigs and track cars because it eliminates complex failure points.
Coil springs provide a linear and predictable spring rate, meaning the force required increases consistently as the spring compresses. This gives the suspension stable and predictable performance during cornering, rough roads, or long descents. However, coil suspension offers limited adjustability. Preload can be adjusted to change sag and ride height, but it does not change the spring’s actual stiffness. To change the spring rate, the existing coil must be replaced with one that has a different rating, making quick adjustments difficult.
Replacing a coil spring requires specific mechanical steps:
Elevate the vehicle on a certified lift and remove the wheel assembly to access the suspension components.
Disconnect the sway bar end links and lower shock mounting bolts to free the lower control arm.
Use a heavy-duty spring compressor tool to relieve tension on the factory coil before attempting removal.
Extract the old spring and seat the new coil perfectly into the upper and lower rubber isolators.
Carefully decompress the spring, ensuring it remains aligned, then torque all suspension bolts to factory specifications.
Pneumatic systems excel at dynamic load management. When you drop a heavy trailer onto the hitch of an air-equipped truck, the rear end initially sags. Ride-height sensors immediately detect this geometry change. The compressor activates, forcing high-pressure air into the rear bags until the vehicle returns to its factory ride height. This dynamic leveling maintains optimal steering geometry, preserves braking efficiency, and keeps headlights aimed correctly at the road.
Mechanical springs suffer under varying heavy loads. A coil spring compresses based on its fixed linear rate. If you attach a heavy trailer, the rear end will exhibit static sag. The vehicle will squat, lifting the front tires slightly off the pavement. This compromises steering response and increases stopping distances. To prevent this rear-end squat, owners must install supplementary helper springs or aftermarket airbags inside the factory coils.
Coil suspension usually responds better to small bumps because it does not require the tight air seals found in air suspension. These seals create friction, known as “stiction,” which can slightly delay the initial movement of an air shock. As a result, coil suspension often feels smoother and more stable over small vibrations, rough roads, and trail chatter. Air suspension may feel slightly firmer at the beginning of its travel, but once moving, it still provides responsive and comfortable suspension performance.
Air suspension offers much greater adjustability than coil suspension. Mountain bikers can quickly add or remove air to match the suspension to their weight and riding needs, while automotive systems can adjust ride height and stiffness through electronic controls. Many modern air systems also use adaptive damping to respond automatically to changing road conditions. Coil suspension is less flexible because changing the spring rate usually requires replacing the coil, while damping adjustments often need to be made manually.
Pneumatic setups are generally lighter, particularly in mountain biking applications. An air shock relies on an empty chamber filled with gas, eliminating the need for a heavy metal spring. This reduction in overall weight improves maneuverability and reduces fatigue on long climbs. In automotive applications, lighter suspension components reduce unsprung mass, which allows the wheel to react faster to terrain changes.
Mechanical springs introduce a significant weight penalty. A heavy-duty steel spring adds considerable mass to the suspension assembly. While titanium springs offer a lighter alternative, they remain heavier than an equivalent air chamber. In mountain biking, this extra weight negatively impacts climbing efficiency. In automotive applications, heavier unsprung mass can slightly degrade fuel economy and slow down the suspension's reaction time over rapid, successive impacts.
Pneumatic systems feature high initial complexity. A complete setup requires multiple specialized components. You must install the air struts, mount the compressor, route high-pressure air lines, and wire the electronic control modules. This complexity demands significant installation labor. Technicians must ensure every fitting is perfectly sealed to prevent microscopic leaks. The intricate nature of these systems makes them a premium feature, often reserved for luxury SUVs and high-end heavy-duty trucks.
Mechanical systems champion simplicity. A coilover assembly consists of straightforward mechanical parts. Installation is typically a direct bolt-on process. Mechanics simply remove the old unit and bolt the new one into the factory mounting points. There are no air lines to route, no compressors to wire, and no software modules to calibrate. This simplicity drastically reduces the labor hours required for installation and setup.
Air suspension has more potential failure points than coil suspension. Over time, road salt, extreme temperatures, and repeated movement can cause rubber air bags to crack and develop small leaks. As air escapes, the compressor must run more often to maintain ride height, which can eventually lead to overheating and compressor failure. Cold temperatures can also reduce air pressure and affect system performance. Coil suspension is generally simpler and more durable because steel springs cannot leak or develop dry rot. Although coil springs may gradually sag and shock absorbers eventually require service, major failures that make the vehicle undrivable are less common.
Symptom | Air Suspension Diagnosis | Coil Suspension Diagnosis |
|---|---|---|
Vehicle sagging overnight | Leaking air strut, damaged airline, or failing valve block. | Severe metal fatigue (rare) or broken coil winding. |
Harsh ride quality | Compressor failure resulting in zero air pressure (riding on bump stops). | Blown hydraulic damper seal leaking fluid. |
Excessive bouncing | Electronic damping module failure or sensor misalignment. | Completely degraded shock absorber fluid or blown internal valving. |
Uneven ride height | Faulty ride-height sensor or localized airbag puncture. | Mismatched spring rates or improper preload collar adjustment. |
Replacing pneumatic components is highly resource-intensive. If a single air strut fails, the replacement process involves sourcing a specialized part, depressurizing the system, and recalibrating the ride-height sensors. If the compressor fails, the entire system is rendered useless until a replacement is installed. The recurring nature of these failures often frustrates owners of aging luxury vehicles.
Because of these recurring issues, aftermarket air-to-coil conversion kits have become highly popular. These kits allow owners to permanently remove the failing pneumatic system. They replace the air struts with standard mechanical coilovers. This conversion provides a permanent, economical fix to recurring pneumatic failures. It eliminates the complex failure points and restores reliable, predictable drivability to older vehicles.
When towing heavy trailers or hauling maximum payloads, the primary success criteria include maintaining a level ride height, preserving steering geometry, and ensuring braking efficiency. Variable loads drastically alter a vehicle's center of gravity. A heavy gooseneck trailer applies massive downward force on the rear axle.
Pneumatic systems are mandatory for frequent, heavy-duty towing. The ability to dynamically level the chassis ensures the truck remains stable under massive tongue weights. The front tires maintain proper contact with the road, ensuring steering inputs translate into directional changes. If your vehicle features standard mechanical springs, installing supplementary air helper springs inside the rear coils is highly recommended. This hybrid approach provides the reliability of a steel spring with the load-leveling capability of compressed air.
For daily highway commuting, the success criteria balance the smoothest possible ride against the available maintenance budget. Highway driving exposes the chassis to expansion joints, potholes, and continuous road noise.
For pure on-road highway driving, pneumatic setups provide unmatched isolation. The progressive air spring absorbs harsh impacts, delivering a floating sensation over broken pavement. Luxury automakers utilize these systems to completely detach the cabin from road harshness. However, if you are purchasing an aging luxury vehicle out of warranty, a mechanical spring conversion is the pragmatic choice. Converting to steel springs prevents catastrophic repair bills and ensures the vehicle remains reliably on the road for years to come.
In mountain biking, suspension choice dictates how the bike interacts with the trail. The success criteria weigh maximum traction and heat dissipation against overall weight and a lively pop off jumps.
Mechanical coils dominate the downhill and enduro disciplines. The linear spring rate provides fade-free consistency during long, punishing descents. The lack of stiction ensures maximum grip over wet roots and high-frequency brake bumps. Downhill racers prefer coils because the shock oil handles heat better without the insulating layer of a pressurized air chamber. Conversely, pneumatic shocks dominate the trail and all-mountain categories. The lighter weight improves climbing efficiency. The progressive spring curve provides a lively, tunable ride that excels on jump trails and flow sections. Riders can adjust the pressure for different trails using a simple hand pump.
Converting an aging luxury vehicle to mechanical springs carries specific implementation risks. Removing the factory pneumatic struts often triggers dashboard warning lights. The vehicle's ECU detects the missing components and throws error codes. These codes can disable other electronic systems like traction control, ABS, or adaptive cruise control. Additionally, selecting the wrong spring rate will severely alter the vehicle's ride height and handling dynamics.
To mitigate these risks, always source comprehensive conversion kits that include Electronic Bypass Modules. These small electronic devices plug into the factory wiring harness. They trick the ECU into believing the pneumatic system is still installed and functioning perfectly. This keeps the dashboard clear of error codes. Furthermore, consult with the kit manufacturer to select a spring rate specifically tuned for your vehicle's exact curb weight and engine configuration.
Extreme environments pose significant threats to pneumatic architecture. In automotive applications, cold weather is the primary enemy. Condensation naturally builds up inside the air lines and compressor tank. In freezing temperatures, this moisture turns to ice. The ice blocks the valve blocks, preventing the system from adjusting pressure. It can also cause the compressor motor to burn out as it fights the blockage. In mountain biking, massive altitude or temperature changes will drastically alter the PSI inside the shock. A shock inflated at sea level will feel completely different at 10,000 feet.
Mitigation requires proactive maintenance. For automotive systems operating in harsh winters, regular use of air brake antifreeze is mandatory. Mechanics should periodically purge the system to remove accumulated moisture. For mountain bikers, mitigation is simpler. Always carry a calibrated, high-pressure shock pump in your pack. Check and equalize your shock pressure at the trailhead, especially if you have driven up a mountain or experienced a massive temperature swing since your last ride.
Execute the following steps to finalize your suspension strategy:
Calculate your maximum payload variance and trailer tongue weight to determine if dynamic load leveling is a strict requirement for your chassis.
Measure your mountain bike frame's leverage ratio to confirm whether a linear or progressive shock curve matches the linkage design.
Inspect your current pneumatic lines, compressor housing, and valve blocks for moisture buildup before winter temperatures cause freezing blockages.
Schedule a mechanical conversion kit installation if your aging vehicle experiences intermittent compressor failures or sags overnight.
A: Yes. Many aftermarket manufacturers offer direct conversion kits. These kits replace the pneumatic struts with traditional steel coils. They often include electronic bypass modules to trick the vehicle's computer and prevent dashboard error codes.
A: Yes. Pneumatic systems allow for dynamic load leveling. When you attach a heavy trailer, the system increases pressure to keep the vehicle perfectly level. This maintains safe steering geometry and proper headlight alignment, which static mechanical springs cannot achieve without sagging.
A: Pneumatic setups generally provide the smoothest ride for on-road driving. The progressive air spring absorbs large road imperfections effectively. They are often paired with adaptive dampers to isolate the cabin from harsh impacts, whereas mechanical springs provide a firmer road feel.
A: Mechanical shocks lack the tight, high-friction pneumatic seals required to hold high-pressure air. This lack of static friction allows the shock to compress immediately upon hitting small chatter. The result is a smoother, quieter, and more compliant ride over minor trail imperfections.
A: In automotive applications, pneumatic components typically last between 80,000 and 100,000 miles. Rubber air springs eventually suffer from dry rot or micro-punctures. Extreme climates accelerate this degradation, necessitating replacement of the bags, compressor, or valve blocks.
A: Mechanical spring suspension is vastly superior in freezing temperatures. Pneumatic systems are prone to condensation build-up in the air lines. This moisture can freeze, block valves, and cause the compressor to burn out or the entire system to collapse.
