The transition of vehicle suspension from passive mechanical springs to complex, software-driven pneumatic and hydraulic architectures fundamentally changes ride dynamics and vehicle ownership. Buyers evaluating high-end vehicles, fleet configurations, or aftermarket upgrades face a maze of proprietary OEM terminology. Labels like AIRMATIC, E-Active Body Control, PASM, and Adaptive Air Suspension often blur the lines between vastly different technologies. Misunderstanding the technical distinctions between these suspension types leads to mismatched performance expectations and unanticipated long-term maintenance liabilities.

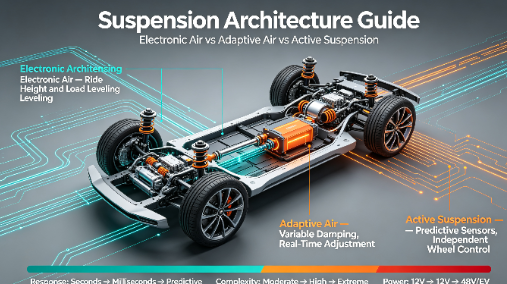

This guide deconstructs the engineering realities, performance capabilities, and mechanical architectures across electronic, adaptive, and active suspension systems. We provide a clear, technical evaluation framework to help you match the right suspension hardware to your specific driving demands and maintenance capabilities.
Electronic Air Suspension primarily manages ride height and load leveling via pneumatic bladders and a central compressor, but relies on passive dampers for shock absorption.
Adaptive Air Suspension introduces variable damping, utilizing sensors to adjust shock absorber stiffness in real-time based on road conditions and driver inputs.
Active Suspension utilizes high-voltage architectures, hydraulic actuators, and predictive sensors (cameras/radar) to independently push or pull individual wheels, actively countering body roll, pitch, and dive.
The Decision Trade-off: The jump from adaptive to active systems yields marginal gains in daily comfort but introduces significant hardware complexity, weight penalties, and exponential increases in out-of-warranty repair costs.
Table of Contents
Basic electronic air suspension establishes the baseline for modern load management. Engineers design these systems to solve specific physical limitations of traditional steel coil springs. Steel springs have a fixed linear or progressive rate. When you load a vehicle with heavy cargo, steel springs compress, causing the rear end to sag. This alters headlight aim, shifts weight off the front steering axle, and reduces suspension travel. Electronic air systems replace the steel coil with a pneumatic bladder. By adding or releasing compressed air, the system maintains a level static ride height regardless of the payload.
The architecture relies on a closed or semi-closed pneumatic loop. The primary components work together to manage air volume and pressure across the chassis. Understanding these components is necessary for diagnosing leaks and mechanical failures.
Air Struts and Springs: Heavy-duty rubber bladders reinforced with Kevlar or nylon cords support the vehicle weight. They fold over a composite or aluminum piston as the suspension compresses.
Central Air Compressor: An electric pump generates the required air pressure. It features an integrated desiccant dryer to remove moisture from incoming ambient air before it enters the system.
Valve Block: An electro-magnetic manifold directs pressurized air from the compressor or storage tank to individual air springs based on ECU commands. It contains multiple internal solenoids and tiny O-rings.
Ride Height Sensors: Articulating arms connected to the control arms measure the physical distance between the chassis and the axle, sending continuous voltage signals back to the control module.
The electronic control unit (ECU) monitors these sensors constantly. If the rear suspension compresses under a heavy load, the ECU opens the specific valves in the block and commands the compressor to fill the rear bladders until the target height is reached. The process reverses when the load is removed, venting excess air to atmosphere or back into a reservoir.
Standard electronic air suspension excels at leveling but falls short in dynamic handling. The primary limitation lies in the shock absorbers. These systems use passive, mechanically valved dampers. The air spring controls the ride height, but the passive damper controls the wheel's upward and downward movement.
Because the damping rate is fixed, the system cannot adapt to sudden changes in road texture or aggressive cornering. This results in a floaty ride characteristic. The suspension absorbs large bumps well but struggles to control secondary body motions. Furthermore, ambient air systems face severe environmental vulnerabilities. Compressors draw in outside air. If the desiccant dryer saturates, moisture enters the pneumatic loop. In sub-zero climates, this condensation freezes inside the valve block or air lines, paralyzing the suspension entirely.
Engineers developed adaptive air suspension to solve the dynamic limitations of basic electronic systems. This architecture merges pneumatic load leveling with continuously variable shock absorbers. It bridges the gap between static load management and real-time chassis control, allowing the vehicle to change its handling characteristics on the fly.
Adaptive systems rely on a high-speed sensor network to read the road and driver inputs. The ECU processes data from vertical accelerometers on the chassis, wheel position sensors at each corner, steering angle sensors, and brake pressure monitors. This data dictates the behavior of the variable dampers. Manufacturers typically use one of two damping technologies to achieve this variability.
Electronically Controlled Internal Valving: Solenoids inside the shock absorber open or close bypass ports. A pulse-width modulated (PWM) signal from the ECU moves a pintle valve. Restricting the flow of hydraulic oil makes the damper stiffer; opening the ports makes it softer. This allows independent control over compression and rebound strokes.
Magneto-Rheological (MR) Fluid: The damper contains synthetic oil infused with microscopic magnetic particles. An electromagnetic coil applies a magnetic field to the fluid, instantly changing its viscosity from a thin liquid to a near-solid state. This provides faster reaction times than mechanical solenoid valves.
This reactive technology transforms vehicle handling. When you select a sport mode, the ECU lowers the air springs to reduce the center of gravity and stiffens the dampers to restrict body roll. If you strike a pothole, the wheel position sensor detects the sudden drop. The ECU softens the damper on that specific wheel in milliseconds to absorb the impact, then instantly stiffens it to prevent the chassis from rebounding excessively. Common OEM systems like BMW Adaptive M Suspension and Porsche Active Suspension Management (PASM) operate on these exact principles.
The integration of electronics into the shock absorber introduces new maintenance variables. Adaptive dampers generally have a shorter lifespan than standard passive shocks due to the complexity of internal solenoids and seals. When an adaptive shock fails, it often triggers a dashboard warning light and defaults to its stiffest setting to ensure vehicle stability. Diagnosing these faults requires specialized scan tools. Technicians must differentiate between a mechanical fluid leak, a severed wiring harness, or a failed ride height sensor sending erratic data to the ECU.
Active suspension represents a fundamental shift in chassis engineering. While adaptive systems react to forces after the tire strikes an obstacle, active systems predict road imperfections and neutralize them before the chassis is disturbed. This requires a massive leap in processing power and mechanical force.
True active suspension requires immense electrical energy. These systems integrate forward-facing stereo cameras, LiDAR, and radar to scan the road surface topography ahead of the vehicle. The suspension ECU maps upcoming potholes, speed bumps, and dips in real-time.
To act on this data instantly, active systems utilize 48-volt electrical architectures. A standard 12-volt system cannot provide the rapid, high-amperage power required to physically manipulate a heavy vehicle chassis at highway speeds. The 48V system powers high-torque electric motors or high-pressure hydraulic pumps located at each corner of the vehicle.
Active systems abandon traditional passive anti-roll bars. Instead, they use independent hydraulic pumps or electro-mechanical actuators at each wheel. These actuators can physically push the tire down into a dip or pull the wheel up over a bump, completely isolating the cabin from the road surface. When the camera detects a speed bump, the system lifts the front wheels precisely as they reach the bump, absorbing the impact without transferring vertical force to the chassis.
It is necessary to differentiate full active suspension from 48V active anti-roll bars. Systems like Porsche Dynamic Chassis Control (PDCC) or Audi Electromechanical Active Roll Stabilization (EAWS) use an electric motor in the middle of a split sway bar. They twist the bar to counter body roll during cornering. However, they only manage lateral forces across an axle. They cannot independently lift a single wheel over a pothole like a true active suspension system.
The pursuit of a perfectly flat ride introduces severe engineering compromises. Active suspension hardware adds substantial weight to the vehicle. The hydraulic pumps, accumulators, high-voltage wiring, and heavy-duty actuators increase the unsprung and sprung mass. Furthermore, the continuous operation of these actuators creates a parasitic draw on the vehicle's electrical system, which negatively impacts the range of electric vehicles (EVs). Calibration is also extremely complex, requiring precise alignment of the forward-facing cameras to ensure the suspension reacts at the exact right millisecond.

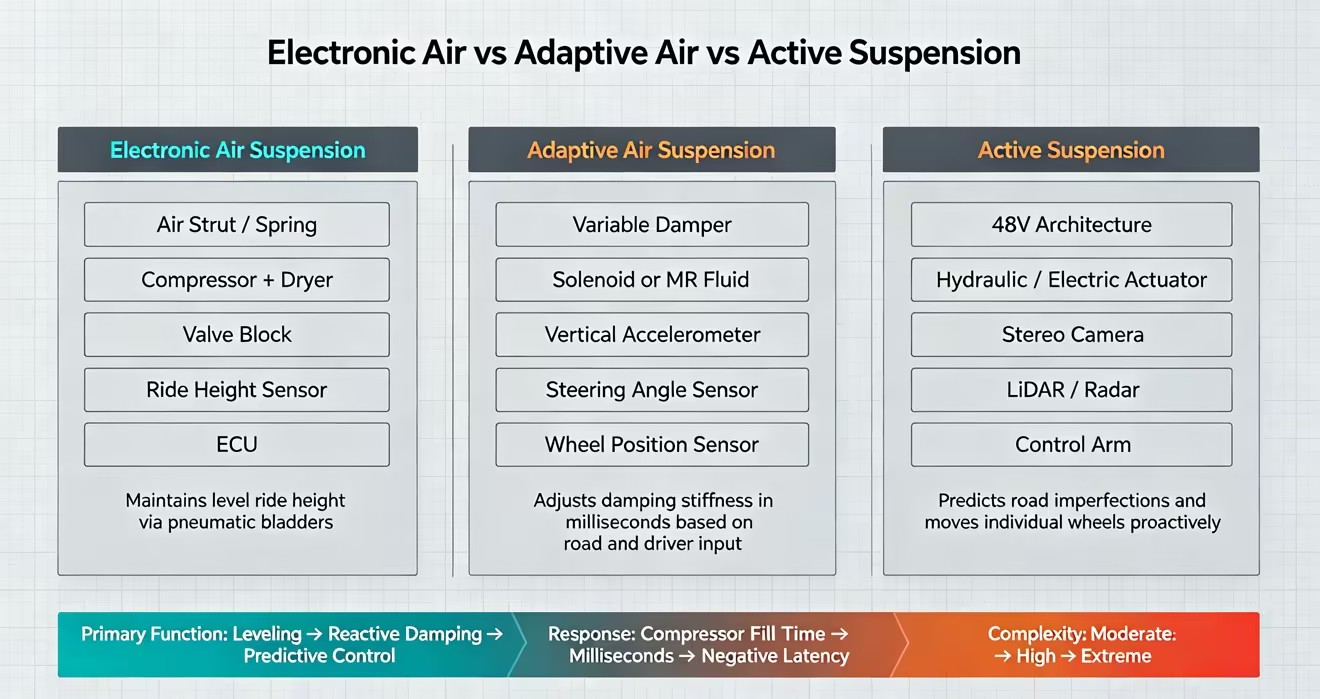

Evaluating active vs adaptive air suspension requires a direct comparison of their mechanical capabilities, processing speeds, and long-term viability. The table below outlines the core differences in architecture and performance.
Feature | Electronic Air Suspension | Adaptive Air Suspension | Active Suspension |
|---|---|---|---|
Primary Function | Ride height and load leveling | Variable damping and leveling | Predictive independent wheel control |
Response Time | Seconds (Compressor fill time) | Milliseconds (Reactive) | Negative Latency (Predictive) |
Damping Control | Passive (Fixed rate) | Continuous variable (Solenoid/MR) | Fully active hydraulic/electric actuators |
Electrical Requirement | Standard 12V | Standard 12V | High-output 48V or EV Architecture |
Hardware Complexity | Moderate | High | Extreme |
Latency defines the difference between these architectures. Adaptive systems are reactive. They require the wheel to experience an impact, the sensor to register the movement, and the ECU to adjust the damper. This happens in milliseconds, but the initial impact force still transfers to the chassis. Active systems operate with negative latency. Because the cameras read the road ahead, the ECU commands the actuator to move the wheel before the tire even touches the obstacle.
Electronic and adaptive air struts package neatly into traditional suspension towers. They replace standard coil-over-shock assemblies without requiring major chassis modifications. Active suspension systems demand a massive physical footprint. Engineers must package individual hydraulic pumps, fluid reservoirs, high-voltage harnesses, and heavy control arms. This limits aftermarket scalability. You cannot easily retrofit a true active suspension onto a vehicle not originally designed for it.
Power draw varies wildly across these platforms. A standard air compressor only runs intermittently to adjust ride height. Adaptive dampers draw minimal continuous current to operate their internal solenoids. Active systems constantly draw heavy current to power the hydraulic pumps or electric motors fighting chassis roll. This requires robust 48V mild-hybrid systems or dedicated high-voltage battery packs to prevent draining the primary 12V system.
The integration of proprietary technology drastically increases repair risks. Replacing a standard air strut is a straightforward mechanical procedure involving basic hand tools and a standard diagnostic scanner to bleed the air lines. Replacing a fully integrated active suspension actuator involves high-voltage safety protocols, hydraulic line bleeding, and complex software calibration. Independent shops often lack the proprietary OEM software required to recalibrate the predictive cameras and suspension ECUs after a hard-part replacement. This forces owners to rely on dealership service centers for the life of the vehicle.
For standard daily driving, basic electronic or adaptive air systems offer the most practical solution. They provide excellent straight-line comfort, isolate cabin noise, and manage passenger loads efficiently. The extreme capabilities of an active system are rarely utilized during typical highway cruising, making the added weight and complexity unnecessary for most commuters.
Track enthusiasts and purists often avoid full active suspension. While active systems keep the car perfectly flat, they isolate the driver from mechanical feedback. Drivers rely on predictable weight transfer to gauge tire grip and slip angles. Adaptive systems are heavily favored here. They allow the driver to stiffen the chassis for track use while maintaining the linear, predictable feedback required for high-performance driving.
Heavy towing mandates electronic air leveling. Keeping the vehicle level ensures proper steering geometry, maintains headlight aim, and keeps weight distributed evenly across the braking axles. In off-road environments, active systems can push wheels down into deep ruts to maintain traction. However, the delicate predictive sensors are easily blinded by mud, dust, and water. Robust adaptive air systems are generally preferred for overlanding due to their mechanical durability in harsh conditions.
Buyers in regions with extreme winter weather must evaluate pneumatic vulnerabilities. Standard open-air suspension systems are highly susceptible to cold-weather failures. Moisture bypasses aging desiccants, freezes in the valve block, and causes the suspension to collapse overnight. If you live in a sub-zero climate, prioritize vehicles utilizing closed-loop nitrogen systems. These systems do not draw in ambient air, drastically reducing the risk of internal freezing and corrosion.
Modifying factory air suspension introduces significant risks. Many owners install aftermarket lowering links or electronic lowering modules to achieve an aggressive stance. Tricking the ride height sensors forces the air springs to operate at a lower volume. This reduces the spring rate, leading to frequent bottoming out and accelerated wear on the adaptive dampers. Altering the static ride height can misalign the predictive cameras used in active systems, disabling safety features and voiding factory warranties.
Understanding the failure hierarchy prevents misdiagnosis and unnecessary parts replacement. Follow a strict troubleshooting protocol when dealing with pneumatic suspension faults.
Identify Air Leaks First: A sagging corner usually indicates a torn air bladder. Spray soapy water on the exposed rubber to check for bubbling. If the entire front or rear sags, suspect a leaking valve block or damaged air line. Valve block O-rings frequently dry out and bypass air internally.
Evaluate Compressor Health: If the compressor runs constantly and sounds raspy, it is compensating for a leak. Continuous running scores the cylinder wall and burns out the electrical relay. Always replace the relay when installing a new compressor.
Isolate Sensor Faults: If the vehicle sits level but rides harshly, the pneumatic loop is intact. The fault lies in the adaptive damping electronics. Inspect the wiring harnesses leading to the shock absorbers for chafing or corrosion before replacing the damper unit.
Maintain the Desiccant: For open-air systems, replace the compressor desiccant beads every few years. Dry air is the only way to prevent internal valve block corrosion and winter freeze-ups.
Conduct extended test drives on varied, imperfect road surfaces to physically feel the latency differences between reactive adaptive dampers and predictive active actuators.
Verify whether the vehicle utilizes an open-air compressor system or a closed-loop nitrogen system before operating the vehicle in sub-zero climates.
Consult specialized independent mechanics regarding the specific failure rates, diagnostic tool requirements, and calibration procedures of the OEM suspension system.
Inspect the physical condition of the air bladders for dry rot and listen for excessive compressor run-time during any pre-purchase inspection.
A: Adaptive systems react to road conditions by changing damper stiffness after the wheel hits a bump. Active systems use predictive sensors and hydraulic actuators to independently push or pull wheels, neutralizing road imperfections before the chassis is disturbed.
A: No. 48V active sway bars only manage lateral body roll across an axle during cornering. A true active suspension can independently control the vertical movement of each individual wheel to absorb impacts.
A: It does not increase the legal gross vehicle weight rating. However, the pneumatic leveling aspect keeps the vehicle perfectly level under heavy loads, which improves steering geometry, headlight aim, and braking stability.
A: Ambient moisture can bypass aging compressor desiccants and freeze inside valve blocks and air lines, leading to a collapsed suspension in sub-zero temperatures. Closed-loop nitrogen systems are far more resistant to cold-weather failures.
A: Most OEM air suspension components last between 60,000 and 100,000 miles. Rubber bladders eventually dry rot and leak, while compressors require rebuilding or replacement depending on climate and road conditions.
A: Predictive suspension is a specific feature of modern active suspensions. It utilizes forward-facing cameras and radar to scan the road, sending data to the active actuators before the tire strikes an obstacle.
